200C 300V UL4291 Silicone Rubber Cable

Color: Red, White, Yellow, Green, Brown, Black, Blue, Pink, etc.
Size: 2X18AWG, 2X16AWG
Package: 305m/roll
Quantity:
Inquire Add to Basket

  • UL4291

  • Fongming

200C 300V UL4291 Silicone Rubber Cable



Description

Name:Silicone Rubber Cable

Model:AWM 4291

Size:2*18-2*16AWG



Feature

Ratings Voltage:300V

Rated Temperature: 200℃

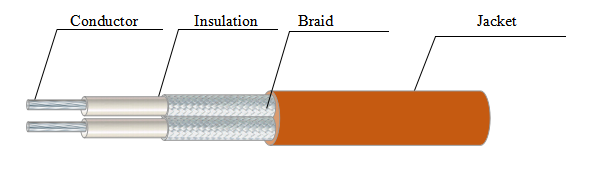

Structure

Conductor:Copper,Tinned Copper

Insulation:Silicone Rubber

Braid:Fiberglass

Jacket: Silicone Rubber




4291

Size

AWG

Conductor Structure
(No./mm)

Insulation

Nominal Thickness
(mm)

Braid

Thickness

(mm)

Jacket

 Thickness
(mm)

Diameter
(mm)

2*18

16/0.254

0.38

0.2

0.76

3.8±0.2*6.1±0.2

2*16

26/0.254

4.2±0.2*6.8±0.2
