150C 600V UL4598 Silicone Rubber Cable

Color: Red, White, Yellow, Green, Brown, Black, Blue, Pink, etc.
Size: 2X26AWG,3X26AWG,4x26AWG,5x26AWG, 2X24AWG,3X24AWG,4x24AWG,5x24AWG, 2X22AWG,3X22AWG,4x22AWG,5x22AWG, 2X20AWG,3X20AWG,4x20AWG,5x20AWG, 2X18AWG,3X18AWG,4x18AWG,5x18AWG,2X16AWG,3X16AWG,4x16AWG,5x16AWG,2X14AWG,3X14AWG,4x14AWG,5x14AWG
Package: 305m/roll

Quantity:



Inquire Add to Basket

Model:
UL4598
Brand:
Fongming

Product Description

150C 600V UL4598 Silicone Rubber Cable

Description

Name:Silicone Rubber Cable

Model:AWM 4598

Size:2*26-5*14AWG

Feature

Ratings Voltage:600V

Rated Temperature: 150℃

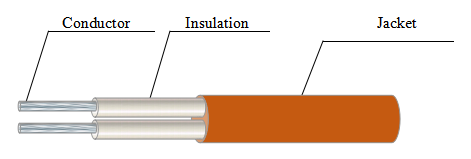

Structure

Conductor:Copper,Tinned Copper

Insulation:Silicone Rubber

Jacket: Silicone Rubber

4476

No. Of Single	Size AWG	Conductor Structure (No./mm)	Insulation Thickness (mm)	Jacket Thickness (mm)	600V Diameter (mm)
			600V
2	26	7/0.16	0.76	1.14	6.3±0.2
3					6.6±0.2
4					7.1±0.2
5					7.7±0.2
2	24	7/0.2	0.76	1.14	6.5±0.2
3					6.9±0.2
4					7.4±0.2
5					8.0±0.2
2	22	7/0.254	0.76	1.14	6.9±0.2
3					7.2±0.2
4					7.8±0.2
5					8.5±0.3
2	20	10/0.254	0.76	1.14	7.2±0.2
3					7.6±0.2
4					8.2±0.3
5					8.9±0.3
2	18	16/0.254	0.76	1.14	7.7±0.3
3					8.1±0.3
4					8.8±0.5
5					9.5±0.5
2	16	26/0.254	0.76	1.14	8.3±0.3
3					8.8±0.3
4					9.6±0.5
5					10.4±0.5
2	14	41/0.254	0.76	1.14	9.1±0.5
3					9.6±0.5
4					10.5±0.5
5					11.5±0.5

UL4598 Silicone Cable UL4598 Cable 600V Silicone Cable Silicone Rubber Cable Silicone Rubber Insulated Cable 150C Silicone Cable Multi Silicone Cable Silicone Rubber Wire UL4598 Wire
