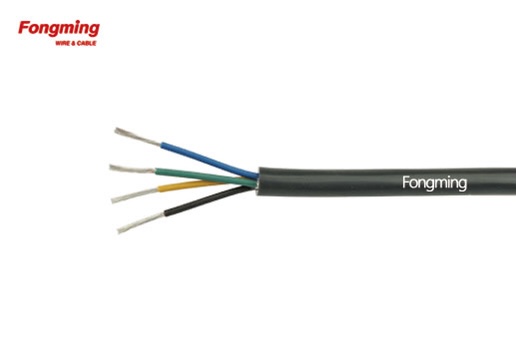

150C 200C 600V UL4389 Silicone Rubber Cable
Description
Name:Silicone Rubber Cable
Model:AWM 4389
Size:2*26-5*14AWG
Feature
Ratings Voltage:600V
Rated Temperature: 150/200℃
Structure
Conductor:Copper,Tinned Copper
Insulation:Silicone Rubber
Jacket: Silicone Rubber
No. Of Single | Size AWG | Conductor Structure | Insulation Thickness | Jacket Thickness | 600V Diameter |
600V | |||||
2 | 26 | 7/0.16 | 0.76 | 1.14 | 6.3±0.2 |
3 | 6.6±0.2 | ||||
4 | 7.1±0.2 | ||||
5 | 7.7±0.2 | ||||
2 | 24 | 7/0.2 | 0.76 | 1.14 | 6.5±0.2 |
3 | 6.9±0.2 | ||||
4 | 7.4±0.2 | ||||
5 | 8.0±0.2 | ||||
2 | 22 | 7/0.254 | 0.76 | 1.14 | 6.9±0.2 |
3 | 7.2±0.2 | ||||
4 | 7.8±0.2 | ||||
5 | 8.5±0.3 | ||||
2 | 20 | 10/0.254 | 0.76 | 1.14 | 7.2±0.2 |
3 | 7.6±0.2 | ||||
4 | 8.2±0.3 | ||||
5 | 8.9±0.3 | ||||
2 | 18 | 16/0.254 | 0.76 | 1.14 | 7.7±0.3 |
3 | 8.1±0.3 | ||||
4 | 8.8±0.5 | ||||
5 | 9.5±0.5 | ||||
2 | 16 | 26/0.254 | 0.76 | 1.14 | 8.3±0.3 |
3 | 8.8±0.3 | ||||
4 | 9.6±0.5 | ||||
5 | 10.4±0.5 | ||||
2 | 14 | 41/0.254 | 0.76 | 1.14 | 9.1±0.5 |
3 | 9.6±0.5 | ||||
4 | 10.5±0.5 | ||||
5 | 11.5±0.5 |
