PVC Insulated Stainless Steel Shield RTD Cable
You are here: Home » Products » Thermocouple Wire&Cable » RTD Cable » PVC Insulated Stainless Steel Shield RTD Cable
Share to:

PVC Insulated Stainless Steel Shield RTD Cable

Color: Red, White, Yellow, Green, Brown, Black, Blue, Pink, etc.
Size: 3X26AWG,3X24AWG,3X22AWG,3X20AWG,3X18AWG,3X16AWG,3X14AWG
Quantity:
  • RTD-V-VP
  • Fongming

PVC Insulated Stainless Steel Shield RTD Cable



Description

Name:RTD Cable

Model:RTD-V-VP Type

Size:3*26-3*14AWG



Structure

Conductor:Tinned Copper

Insulation: PVC

Color:2Red,1White

Jacket: PVC

Color:Red

Shield:Stainless Steel Wire

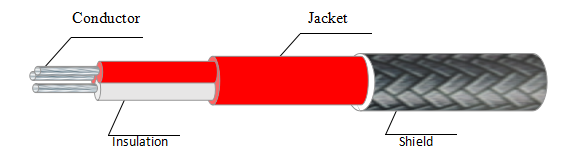

FEP SHIELD RTD

Size

(mm)

Conductor

Structure

P&N  (mm)

Diameter

(mm)

Insulation Thickness

(mm)

Diameter

(mm)

Jacket

Thickness

(mm)

Diameter

(mm)

Shield

Thickness

(mm)

O.D.

(mm)

2*26

7/0.16

0.48

0.3

1.1

0.9

4.2

0.2

4.4±0.2

2*24

7/0.2

0.6

0.3

1.2

0.9

4.4

0.2

4.6±0.2

2*22

7/0.254

0.76

0.3

1.4

1.0

5.0

0.2

5.2±0.2

2*20

7/0.32

0.96

0.3

1.6

1.0

5.5

0.2

5.7±0.2

2*18

7/0.39

1.17

0.4

2.0

1.0

6.3

0.2

6.5±0.3

2*16

19/0.3

1.5

0.4

2.3

1.1

7.2

0.3

7.5±0.3

2*14

19/0.37

1.85

0.5

2.9

1.1

8.5

0.3

8.8±0.3
