Fiberglass Braid PT100 Wire

Color: Red, White, Yellow, Green, Brown, Black, Blue, Pink, etc.
Size: 3X26AWG,3X24AWG,3X22AWG,3X20AWG,3X18AWG,3X16AWG,3X14AWG
Quantity:
  • RTD-G-G

  • Fongming

Fiberglass Braid PT100 Wire



Description

Name:PT100

Model:RTD-G-G

Size:3*26-3*14AWG

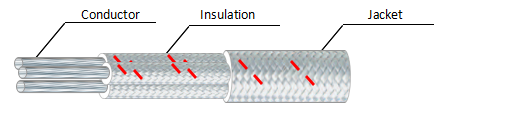

Structure

Conductor:Nickel Plated Copper

Insulation: Fiberglass Braid With High Temperature Finish

Color: 2Cores White With Red Stripe,1Core:White

Jacket: Fiberglass Braid With High Temperature Finish

Color: White With Red Stripe

RTD-G-G

Size

 (AWG)

Conductor

Structure

P&N  (mm)

Diameter

(mm)

Insulation Thickness

(mm)

Diameter

(mm)

Braid

Thickness

(mm)

O.D.

(mm)

3*26

7/0.16

0.48

0.2

0.9

0.2

2.3±0.2

3*24

7/0.2

0.6

0.2

1.0

0.2

2.6±0.2

3*22

7/0.25

0.75

0.2

1.2

0.2

3.0±0.2

3*20

11/0.25

0.96

0.2

1.4

0.2

3.4±0.2

3*18

17/0.25

1.19

0.2

1.6

0.2

3.8±0.2

3*16

27/0.25

1.50

0.2

1.9

0.2

4.5±0.2

3*14

42/0.25

1.87

0.2

2.3

0.2

5.4±0.2
