RTD-G-GP
Fongming

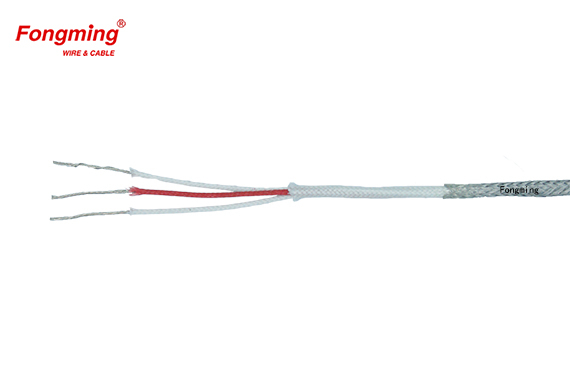

Fiberglass Braid Shield PT100 Wire
Description
Name:PT100
Model:RTD-G-GP
Size:3*26-3*14AWG

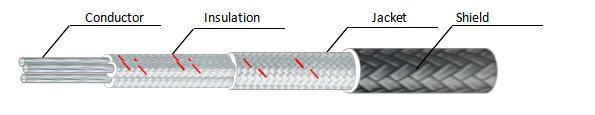

Structure
Conductor：Nickel Plated Copper
Insulation: Fiberglass Braid With Silicone Resin Coating
Color: 2Cores White With Red Stripe,1Core:White
Jacket: Fiberglass Braid With High Temperature Finish
Color: White With Red Stripe
Shield: Stainless Steel Wire
Size (AWG) | Conductor Structure P&N (mm) | Diameter (mm) | Insulation Thickness (mm) | Diameter (mm) | Braid Thickness (mm) | Diameter (mm) | Shield Thickness (mm) | O.D. (mm) |
3*26 | 7/0.16 | 0.48 | 0.2 | 0.9 | 0.2 | 2.3 | 0.2 | 2.5±0.2 |
3*24 | 7/0.2 | 0.6 | 0.2 | 1.0 | 0.2 | 2.6 | 0.2 | 2.8±0.2 |
3*22 | 7/0.25 | 0.75 | 0.2 | 1.2 | 0.2 | 3.0 | 0.2 | 3.2±0.2 |
3*20 | 11/0.25 | 0.96 | 0.2 | 1.4 | 0.2 | 3.4 | 0.2 | 3.6±0.2 |
3*18 | 17/0.25 | 1.19 | 0.2 | 1.6 | 0.2 | 3.8 | 0.2 | 4.0±0.2 |
3*16 | 27/0.25 | 1.50 | 0.2 | 1.9 | 0.2 | 4.5 | 0.2 | 4.7±0.2 |
3*14 | 42/0.25 | 1.87 | 0.2 | 2.3 | 0.2 | 5.4 | 0.2 | 5.6±0.2 |
