RTD-F-FP
Fongming
FEP Insulated Shield RTD Cable
Description
Name:RTD Cable
Model:RTD-F-FP Type
Size:3*26-3*14AWG

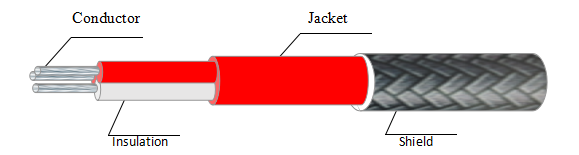

Structure
Conductor:Tinned Copper
Insulation: FEP
Color:2Red,1White
Jacket: FEP
Color:Red
Shield:Stainless Steel Wire
Size (AWG) | Conductor Structure P&N (mm) | Diameter (mm) | Insulation Thickness (mm) | Diameter (mm) | Jacket Thickness (mm) | Diameter (mm) | Shield Thickness (mm) | O.D. (mm) |
3*26 | 7/0.16 | 0.48 | 0.2 | 0.9 | 0.5 | 2.9 | 0.2 | 3.1±0.2 |
3*24 | 7/0.2 | 0.6 | 0.2 | 1.0 | 0.5 | 3.2 | 0.2 | 3.4±0.2 |
3*22 | 7/0.254 | 0.76 | 0.2 | 1.2 | 0.5 | 3.6 | 0.2 | 3.8±0.2 |
3*20 | 7/0.32 | 0.96 | 0.2 | 1.4 | 0.5 | 4.0 | 0.2 | 4.2±0.2 |
3*18 | 7/0.39 | 1.17 | 0.25 | 1.7 | 0.5 | 4.7 | 0.2 | 4.9±0.3 |
3*16 | 19/0.3 | 1.5 | 0.25 | 2.0 | 0.5 | 5.3 | 0.2 | 5.5±0.3 |
3*14 | 19/0.37 | 1.85 | 0.25 | 2.4 | 0.5 | 6.2 | 0.2 | 6.4±0.3 |
