FEP Shield FEP Jacket RTD Cable

Color: Red, White, Yellow, Green, Brown, Black, Blue, Pink, etc.
Size: 3X26AWG,3X24AWG,3X22AWG,3X20AWG,3X18AWG,3X16AWG,3X14AWG
Quantity:
  • RTD-F-PF

  • Fongming

FEP Shield FEP Jacket RTD Cable



Description

Name:RTD Cable

Model:RTD-F-PF Type

Size:3*26-3*14AWG

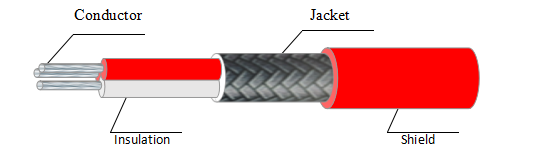

Structure

Conductor:Tinned Copper

Insulation: FEP

Color:2Red,1White

Shield:Stainless Steel Wire

Jacket: FEP

Color:Red

RTD FPF

Size

(AWG)

Conductor

Structure

P&N  (mm)

Diameter

(mm)

Insulation Thickness

(mm)

Diameter

(mm)

Shield

Thickness

(mm)

Diameter

(mm)

Jacket

Thickness

(mm)

O.D.

(mm)

3*26

7/0.16

0.48

0.2

0.9

0.2

2.1

0.5

3.1±0.2

3*24

7/0.2

0.6

0.2

1.0

0.2

2.4

0.5

3.4±0.2

3*22

7/0.254

0.76

0.2

1.2

0.2

2.8

0.5

3.8±0.2

3*20

7/0.32

0.96

0.2

1.4

0.2

3.2

0.5

4.2±0.2

3*18

7/0.39

1.17

0.25

1.7

0.2

3.9

0.5

4.9±0.3

3*16

19/0.3

1.5

0.25

2.0

0.2

4.5

0.5

5.5±0.3

3*14

19/0.37

1.85

0.25

2.4

0.2

5.4

0.5

6.4±0.3
