Description
Name: ETFE wire
Model: AWM10935
Size: 24 ~ 4 / 0AWG
Feature
Rated voltage: 600V
Rated temperature: 150 ° C

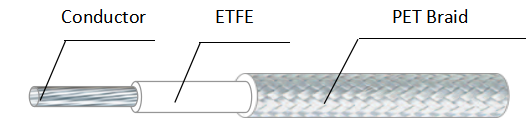

Structure
Conductor:Bare Copper, Tinned Copper
Insulation:Extruded ETFE
Jacket:PET Braid With Varnish Coating
Standard: UL758, UL1581
Size AWG | Conductor Construction (No./mm) | Diameter (mm) | Insulation Thickness (mm) | Diameter (mm) | Jacket Thickness (mm) | Diameter (mm) |
24 | 7/0.2 | 0.60 | 0.15 | 0.90 | 0.1 | 1.2±0.1 |
22 | 7/0.254 | 0.76 | 1.06 | 0.1 | 1.3±0.1 | |
20 | 7/0.32 | 0.96 | 1.26 | 0.15 | 1.6±0.1 | |
18 | 7/0.39 | 1.17 | 1.47 | 0.15 | 1.8±0.1 | |
16 | 19/0.3 | 1.50 | 0.20 | 1.90 | 0.15 | 2.2±0.1 |
14 | 19/0.37 | 1.85 | 2.25 | 0.15 | 2.6±0.1 | |
12 | 19/0.48 | 2.40 | 0.25 | 2.90 | 0.15 | 3.2±0.1 |
10 | 37/0.43 | 3.01 | 3.51 | 0.20 | 3.9±0.2 | |
8 | 57/0.43 | 3.74 | 0.51 | 4.76 | 0.20 | 5.2±0.3 |
6 | 67/0.5 | 4.72 | 5.74 | 0.20 | 6.2±0.5 | |
4 | 106/0.5 | 6.52 | 7.54 | 0.25 | 8.1±0.5 | |
2 | 168/0.5 | 8.21 | 9.23 | 0.25 | 9.7±0.5 | |
1 | 212/0.5 | 9.22 | 0.76 | 10.74 | 0.30 | 11.3±0.5 |
1/0 | 268/0.5 | 10.37 | 11.89 | 0.30 | 12.5±0.5 | |
2/0 | 342/0.5 | 11.72 | 13.24 | 0.30 | 13.5±0.8 | |
3/0 | 430/0.5 | 13.14 | 14.66 | 0.30 | 15.3±0.8 | |
4/0 | 538/0.5 | 14.69 | 16.21 | 0.30 | 16.8±0.8 |
