Description
Name: ETFE wire
Model: AWM11341
Size: 50 ~ 15AWG
Feature
Rated voltage: 300V
Rated temperature: 105 ° C

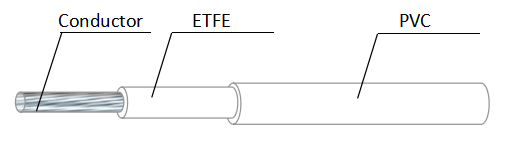

Structure
Conductor:Bare Copper, Tinned Copper
Insulation:Extruded ETFE
Jacket:Extruded PVC
Executive standard: UL758, UL1581
Size AWG | Conductor Construction (No./mm) | Diameter (mm) | Insulation Thickness (mm) | Diameter (mm) | Jacket Thickness (mm) | Diameter (mm) |
50 | 1/0.0251 | 0.0251 | 0.28 | 0.5851 | 0.43 | 1.50±0.05 |
48 | 1/0.0315 | 0.0315 | 0.5915 | 0.43 | 1.50±0.05 | |
46 | 1/0.0399 | 0.0399 | 0.5999 | 0.43 | 1.55±0.05 | |
44 | 1/0.051 | 0.051 | 0.611 | 0.43 | 1.55±0.05 | |
42 | 1/0.064 | 0.064 | 0.624 | 0.43 | 1.55±0.05 | |
40 | 1/0.079 | 0.079 | 0.639 | 0.43 | 1.55±0.05 | |
38 | 1/0.102 | 0.102 | 0.662 | 0.43 | 1.55±0.05 | |
36 | 7/0.05 | 0.15 | 0.71 | 0.43 | 1.65±0.05 | |
34 | 7/0.06 | 0.18 | 0.74 | 0.43 | 1.65±0.05 | |
32 | 7/0.08 | 0.24 | 0.8 | 0.43 | 1.70±0.05 | |
30 | 7/0.1 | 0.30 | 0.86 | 0.43 | 1.75±0.05 | |
28 | 7/0.127 | 0.38 | 0.94 | 0.43 | 1.85±0.05 | |
26 | 7/0.16 | 0.48 | 1.04 | 0.43 | 1.95±0.05 | |
24 | 7/0.2 | 0.60 | 1.16 | 0.43 | 2.05±0.05 | |
22 | 7/0.254 | 0.76 | 1.32 | 0.43 | 2.25±0.05 | |
20 | 7/0.32 | 0.96 | 1.52 | 0.43 | 2.45±0.05 | |
18 | 7/0.39 | 1.17 | 1.73 | 0.43 | 2.65±0.05 | |
16 | 19/0.3 | 1.50 | 2.06 | 0.43 | 3.00±0.10 |
