105℃ 300V UL11341 ETFE insulated shielded wire

Rated temperature: 105 ° C / Rated voltage: 300V / Model: AWM11341

Size: AWM11341 / Conductor: Bare Copper, Tinned Copper

Availability:

Quantity:



Inquire Add to Basket

product description

Description

Name: ETFE wire

Model: AWM11341

Size: 50 ~ 15AWG

Feature

Rated voltage: 300V

Rated temperature: 105 ° C

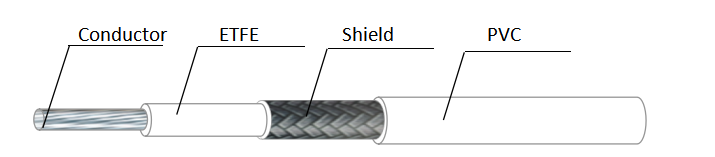

Structure

Conductor:Bare Copper, Tinned Copper

Insulation:Extruded ETFE

Shield: tinned wire

Jacket:Extruded PVC

Standard: UL758, UL1581

WeChat screenshot _20220316110815

Size AWG	Conductor Construction (No./mm)	Diameter (mm)	Insulation Thickness (mm)	Diameter (mm)	Shield Thickness (mm)	Diameter (mm)	Jacket Thickness (mm)	Diameter (mm)
50	1/0.0251	0.0251	0.28	0.5851	0.2	0.9851	0.43	1.90±0.05
48	1/0.0315	0.0315		0.5915	0.2	0.9915	0.43	1.90±0.05
46	1/0.0399	0.0399		0.5999	0.2	0.9999	0.43	1.95±0.05
44	1/0.051	0.051		0.611	0.2	1.011	0.43	1.95±0.05
42	1/0.064	0.064		0.624	0.2	1.024	0.43	1.95±0.05
40	1/0.079	0.079		0.639	0.2	1.039	0.43	1.95±0.05
38	1/0.102	0.102		0.662	0.2	1.062	0.43	1.95±0.05
36	7/0.05	0.15		0.71	0.2	1.11	0.43	2.05±0.05
34	7/0.06	0.18		0.74	0.2	1.14	0.43	2.05±0.05
32	7/0.08	0.24		0.8	0.2	1.2	0.43	2.10±0.05
30	7/0.1	0.30		0.86	0.2	1.26	0.43	2.15±0.05
28	7/0.127	0.38		0.94	0.2	1.34	0.43	2.25±0.05
26	7/0.16	0.48		1.04	0.2	1.44	0.43	2.35±0.05
24	7/0.2	0.60		1.16	0.2	1.56	0.43	2.45±0.05
22	7/0.254	0.76		1.32	0.2	1.72	0.43	2.65±0.05
20	7/0.32	0.96		1.52	0.2	1.92	0.43	2.85±0.05
18	7/0.39	1.17		1.73	0.2	2.13	0.43	3.05±0.05
16	19/0.3	1.50		2.06	0.2	2.46	0.43	3.40±0.10
