Description

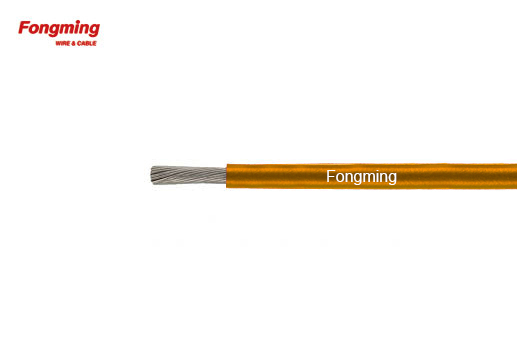

Name: ETFE wire
Model: AWM10125
Size: 36 ~ 4 / 0AWG
Feature
Rated voltage: 300V
Rated temperature: 150 ° C
Structure
Conductor:Bare Copper, Tinned Copper
Insulation:Extruded ETFE
Executive standard: UL758, UL1581
Size AWG | Conductor Construction (No./mm) | Diameter (mm) | Insulation Thickness (mm) | Diameter (mm) |
36 | 7/0.05 | 0.15 | 0.15 | 0.50±0.05 |
34 | 7/0.06 | 0.18 | 0.55±0.05 | |
32 | 7/0.08 | 0.24 | 0.60±0.05 | |
30 | 7/0.1 | 0.30 | 0.65±0.05 | |
28 | 7/0.127 | 0.38 | 0.75±0.05 | |
26 | 7/0.16 | 0.48 | 0.85±0.05 | |
24 | 7/0.2 | 0.60 | 0.95±0.05 | |
22 | 7/0.254 | 0.76 | 1.10±0.05 | |
20 | 7/0.32 | 0.96 | 1.30±0.05 | |
18 | 7/0.39 | 1.17 | 1.55±0.05 | |
16 | 19/0.3 | 1.50 | 0.20 | 1.95±0.05 |
14 | 19/0.37 | 1.85 | 2.30±0.05 | |
12 | 19/0.48 | 2.40 | 0.25 | 2.95±0.10 |
10 | 37/0.43 | 3.01 | 3.55±0.10 | |
8 | 57/0.43 | 3.74 | 0.64 | 5.15±0.20 |
6 | 67/0.5 | 4.72 | 6.10±0.20 | |
4 | 106/0.5 | 6.52 | 7.90±0.20 | |
2 | 168/0.5 | 8.21 | 0.89 | 10.10±0.20 |
1 | 212/0.5 | 9.22 | 11.10±0.30 | |
1/0 | 268/0.5 | 10.37 | 1.14 | 12.75±0.30 |
2/0 | 342/0.5 | 11.72 | 14.10±0.30 | |
3/0 | 430/0.5 | 13.14 | 15.55±0.30 | |
4/0 | 538/0.5 | 14.69 | 17.10±0.30 |
