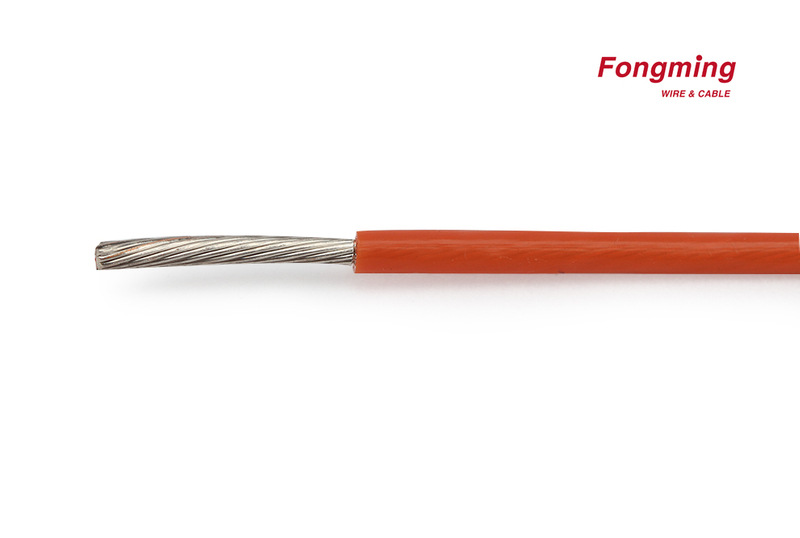

FLR6Y FEP Wire

Color: Red, White, Yellow, Green, Brown, Black, Blue, Pink, etc.
Size: 0.13, 0.22, 0.35, 0.5...4.0,6.0
Package: 305m/roll

Availability:

Quantity:



Inquire Add to Basket

Model:
FLR6Y

Product Description

Description

Name:FEP Wire

Model:FLR6Y

Size:0.13-6mm

Feature

Rated temperature:-40~+210°C

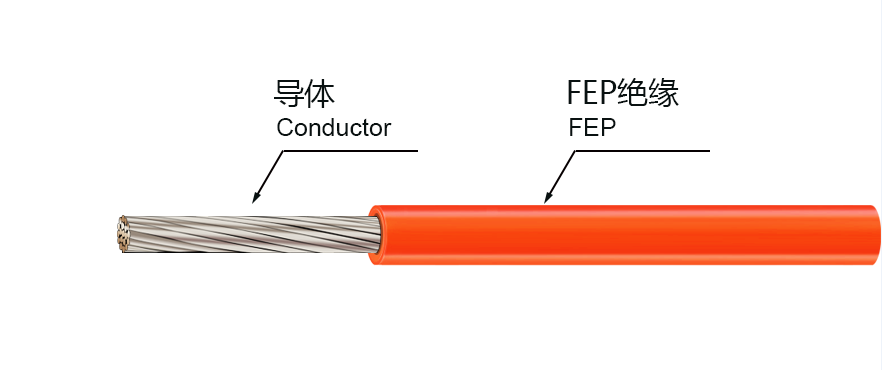

Structure

Conductor:Bare Copper,Tinned copper

Insulation:FEP

Standards

ISO6722-1.ISO19642-3

企业微信截图_1724652081574

Size mm²	Conductor Structure Type A	Conductor Structure Type B	Insulation Thickness (mm)	Diameter (mm)
0.13	7/0.15		0.25	0.95±0.05
0.22	7/0.2		0.25	1.10±0.05
0.35	7/0.26	12/0.2	0.25	1.30±0.05
0.5	19/0.18	16/0.2	0.28	1.50±0.10
0.75	19/0.23	24/0.2	0.30	1.80±0.1
1.0	19/0.26	32/0.2	0.30	1.90±0.1
1.25	19/0.29	16/0.32	0.30	2.10±0.1
1.5	19/0.32	30/0.25	0.30	2.20±0.2
2.0	19/0.37	28/0.3	0.35	2.60±0.2
2.5	37/0.3	50/0.25	0.35	2.80±0.2
4.0		56/0.3	0.40	3.30±0.3
6.0		84/0.3	0.40	3.90±0.3

FEP wire FLR6Y FLR6Y Wire High Temperature Wire Electric Wire Mica Wire FEP
