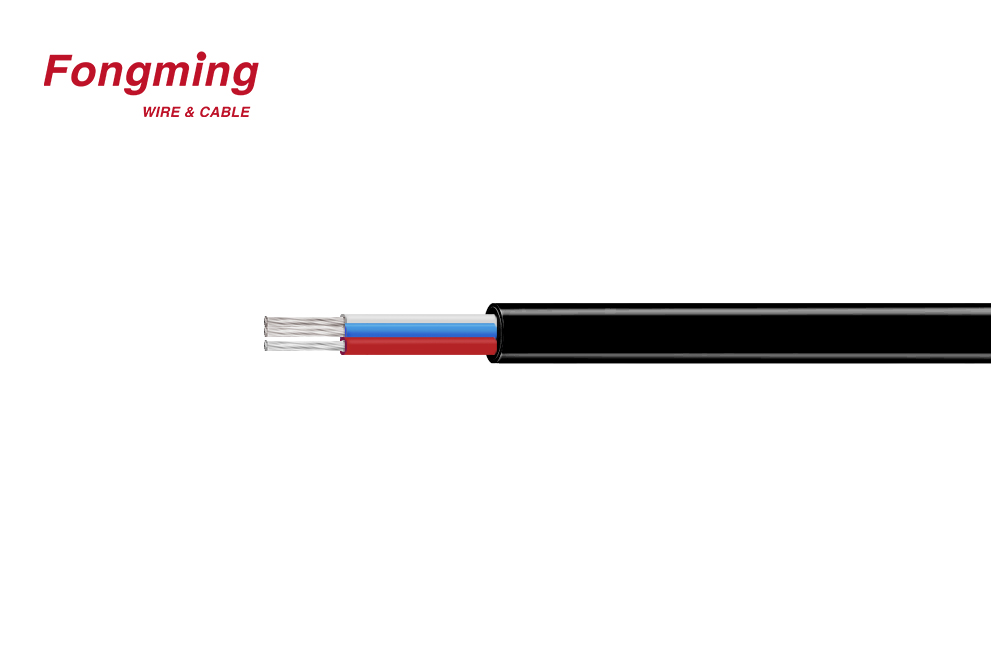

FM-CHEM-RES Multi FEP Cable

Color: Red, White, Yellow, Green, Brown, Black, Blue, Pink, etc. Size:4*24~2*6AWG

Availability:

Quantity:



Inquire Add to Basket

Model:
TF200-MULTI
Brand:
Fongming

Product Description

Description

Name: Multi FEP Wire

Model: TF200-MULTI

Size:4*24~2*6AWG

Feature

Rated Voltage: 600V

Rated Temperature: 200°C

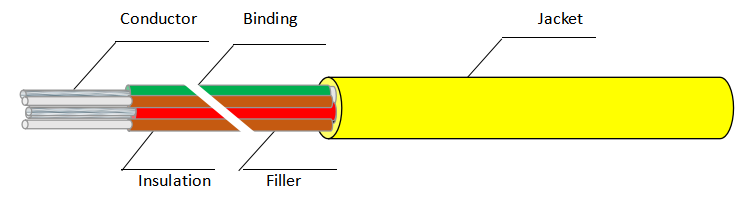

Structure

Conductor: Nickel Plated Copper 3%

Insulation: FEPFiller: Fiberglass with FEP insulated

Binding: Polyester Yarn

Jacket: FEP

111

Size (AWG)	Conductor Structure (mm)	Diameter (mm)	Insulation Thickness (mm)	Diameter (mm)	Cabling Diameter	Jacket Thickness (mm)	O.D. (mm)
4*24	11/0.16	0.59	0.35	1.29-1.39	3.2	0.51	4.2±0.2
4*22	17/0.16	0.73	0.30	1.33-1.43	3.3	0.51	4.3±0.2
6*22	17/0.16	0.73	0.30	1.33-1.43	3.8	0.51	4.8±0.2
3*18	41/0.16	1.20	0.25	1.68~1.78	3.7	0.51	4.7±0.2
4*18	41/0.16	1.20	0.25	1.68~1.78	4.2	0.51	5.2±0.3
5*18	41/0.16	1.20	0.25	1.68~1.78	4.7	0.51	5.7±0.3
8*18	41/0.16	1.20	0.25	1.68~1.78	5.7	0.51	6.7±0.3
12*18	41/0.16	1.20	0.25	1.68~1.78	7.2	0.51	8.2±0.3
16*18	41/0.16	1.20	0.25	1.68~1.78	8.0	0.51	9.0±0.3
2*16	65/0.16	1.48	0.25	1.93~2.03	4.0	0.51	5.0±0.3
3*16	65/0.16	1.48	0.25	1.93~2.03	4.3	0.51	5.3±0.3
4*16	65/0.16	1.48	0.25	1.93~2.03	4.8	0.51	5.8±0.3
5*16	65/0.16	1.48	0.25	1.93~2.03	5.4	0.51	6.4±0.3
8*16	65/0.16	1.48	0.25	1.93~2.03	6.5	0.51	7.5±0.3
12*16	65/0.16	1.48	0.25	1.93~2.03	8.2	0.51	9.2±0.3
16*16	65/0.16	1.48	0.25	1.93~2.03	9.3	0.76	10.3±0.3
2*14	105/0.16	1.89	0.25	2.34~2.44	4.8	0.51	5.8±0.3
4*14	105/0.16	1.89	0.25	2.34~2.44	5.8	0.51	6.8±0.3
8*14	105/0.16	1.89	0.25	2.34~2.44	7.9	0.51	8.9±0.3
12*14	105/0.16	1.89	0.25	2.34~2.44	9.9	0.51	10.9±0.3
16*14	105/0.16	1.89	0.25	2.34~2.44	11.2	0.76	12.7±0.5
4*12	65/0.254	2.37	0.38	3.13-3.23	7.7	0.51	8.7±0.3
8*12	65/0.254	2.37	0.38	3.13-3.23	10.5	0.51	11.5±0.5
12*12	65/0.254	2.37	0.38	3.13-3.23	13.2	0.76	14.7±0.5
2*10	105/0.254	2.85	0.38	3.61-3.97	7.6	0.51	8.6±0.3
4*10	105/0.254	2.85	0.38	3.61-3.97	9.2	0.51	10.2±0.3
2*6	133/0.36	5.26	0.76	6.58~6.88	13.6	0.76	15.1±0.5

Description

Name: Multi FEP Shield Cable

Model:TF250S-Multi

Size:8*24~4*10AWG

Feature

Rated Voltage: 600V

Rated Temperature: 200°C

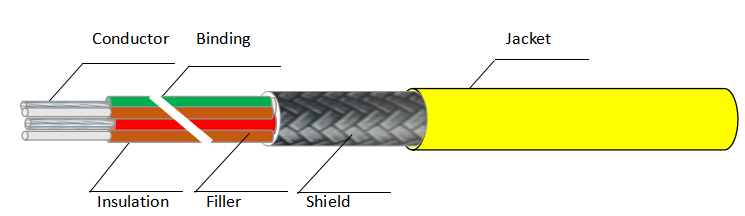

Structure

Conductor: Nickel Plated Copper 3%

Insulation: FEP

Filler: Fiberglass with FEP insulated

Binding: Polyester Yarn

Drain Wire: 56/0.1 Nickel Plated Copper 3%

Shield: Nickel Plated Copper 3%

Jacket: FEP

11102

Size (AWG)	Conductor Structure (mm)	Diameter (mm)	Insulation Thickness (mm)	Diameter (mm)	Cabling Diameter	Shield Thickness (mm)	Diameter (mm)	Jacket Thickness (mm)	O.D. (mm)
8*24	11/0.16	0.59	0.25	1.05-1.15	3.6	0.2	4.0	0.51	5.1±0.3
6*22	17/0.16	0.73	0.25	1.23-1.33	3.8	0.2	4.2	0.51	5.3±0.3
6*20	26/0.16	0.91	0.25	1.41-1.51	4.4	0.2	4.8	0.51	5.9±0.3
2*18	41/0.16	1.20	0.25	1.68~1.78	3.5	0.2	3.9	0.51	4.6±0.3
3*18	41/0.16	1.20	0.25	1.68~1.78	3.7	0.2	4.1	0.51	5.4±0.3
4*18	41/0.16	1.20	0.25	1.68~1.78	4.2	0.2	4.6	0.51	5.6±0.3
6*18	41/0.16	1.20	0.25	1.68~1.78	4.8	0.2	5.2	0.51	6.7±0.3
8*18	41/0.16	1.20	0.25	1.68~1.78	5.7	0.2	6.1	0.51	7.6±0.3
12*18	41/0.16	1.20	0.25	1.68~1.78	7.2	0.2	7.6	0.51	8.8±0.3
2*16	65/0.16	1.48	0.25	1.93~2.03	4.0	0.2	4.4	0.51	5.5±0.3
3*16	65/0.16	1.48	0.25	1.93~2.03	4.3	0.2	4.7	0.51	5.9±0.3
4*16	65/0.16	1.48	0.25	1.93~2.03	4.8	0.2	5.2	0.51	6.2±0.3
5*16	65/0.16	1.48	0.25	1.93~2.03	5.4	0.2	5.8	0.51	6.8±0.3
6*16	65/0.16	1.48	0.25	1.93~2.03	5.5	0.2	5.9	0.51	7.5±0.3
8*16	65/0.16	1.48	0.25	1.93~2.03	6.5	0.2	6.9	0.51	8.9±0.3
12*16	65/0.16	1.48	0.25	1.93~2.03	8.2	0.2	8.6	0.51	9.8±0.5
4*14	105/0.16	1.89	0.25	2.34~2.44	5.8	0.2	6.2	0.51	7.4±0.3
8*14	105/0.16	1.89	0.25	2.34~2.44	7.9	0.2	8.3	0.51	10.2±0.5
2*12	65/0.254	2.37	0.38	3.13-3.23	6.4	0.2	6.8	0.51	7.9±0.3
4*12	65/0.254	2.37	0.38	3.13-3.23	7.7	0.2	8.1	0.51	9.4±0.5
6*12	65/0.254	2.37	0.38	3.13-3.23	9.6	0.2	10.0	0.51	11.0±0.5
8*12	65/0.254	2.37	0.38	3.13-3.23	10.5	0.2	10.9	0.51	12.3±0.5
4*10	105/0.254	2.85	0.38	3.61-3.97	9.2	0.2	9.6	0.51	10.8±0.5
