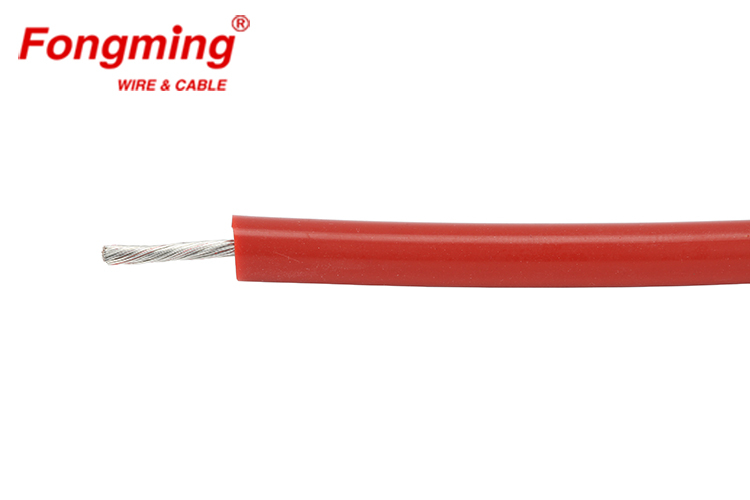

150C 600V UL3142 Silicone Wire

Color: Red, White, Yellow, Green, Brown, Black, Blue, Pink, etc
Size: 18AWG,16AWG,14AWG,12AWG
Package: 305m/roll
Quantity:
Inquire Add to Basket

  • UL3142

  • Fongming

150C 600V UL3142 Silicone Wire


Description

Name:Silicone Insulated Wire

Model:AWM 3142

Size:18~12AWG


Feature

Ratings Voltage:600V

Rated temperature:150℃


Structure

Conductor:Nickel Plated Copper

Insulation:Extruded Silicone Rubber

Standard:UL758、UL1581


2


Size

(AWG)

Conductor

Construction

(No./mm)

Insulation

lthickness (mm)

Diameter

(mm)

Max.

Conductor

Resistance

(Ω/km)

18

16/0.254

 ≥1.52

4.3±0.1

23.5

16

26/0.254

4.6±0.1

14.6

14

41/0.254

5.0±0.1

8.96

12

65/0.254

5.5±0.1

5.64
