UL3133
Fongming

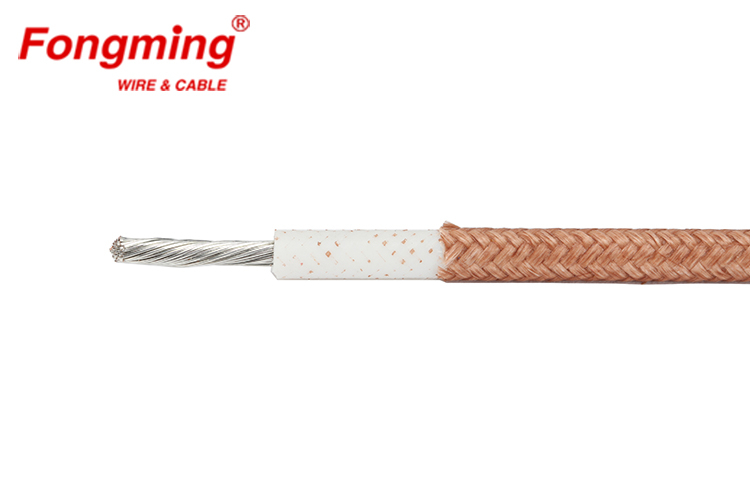

150C 600V UL3133 Silicone Wire
Description
Name:Silicone Insulated Wire
Model:AWM 3133
Size:30~4/0AWG
Feature
Ratings Voltage:600V
Rated Temperature: 150℃
Structure
Conductor:Copper Or Tinned Copper
Insulation:Extruded Silicone Rubber
Color:Blue,Brown,Black,White,Red,Green,Yellow
Standard:UL758、UL1581
AWG | Conductor Structure (mm) | Insulation Thickness | Outer Diameter (mm) |
30 | 7/0.1 | 0.76 | 1.9±0.1 |
28 | 7/0.127 | 2.0±0.1 | |
26 | 7/0.16 | 2.1±0.1 | |
24 | 7/0.20 | 2.2±0.1 | |
22 | 7/0.254 | 2.4±0.1 | |
20 | 10/0.254 | 2.6±0.1 | |
18 | 16/0.254 | 2.8±0.1 | |
16 | 26/0.254 | 3.1±0.1 | |
14 | 41/0.254 | 3.5±0.2 | |
12 | 65/0.254 | 4.0±0.2 | |
10 | 103/0.254 | 4.9±0.2 | |
8 | 163/0.254 | 5.7±0.3 | |
6 | 260/0.254 | 6.8±0.3 | |
4 | 413/0.254 | 8.1±0.3 | |
2 | 168/0.5 | 9.8±0.4 | |
1 | 212/0.5 | 10.8±0.4 | |
1/0 | 268/0.5 | 12.0±0.4 | |
2/0 | 342/0.5 | 13.3±0.4 | |
3/0 | 430/0.5 | 14.7±0.5 | |
4/0 | 538/0.5 | 16.3±0.5 |
