Description

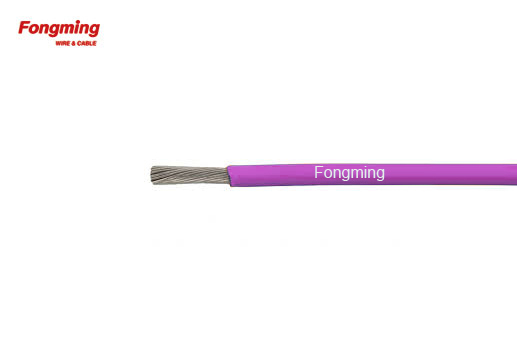

Name: ETFE wire
Model: AWM1517
Size: 32 ~ 20AWG
Feature
Rated temperature: 105 ° C
Structure
Conductor:Bare Copper, Tinned Copper
Insulation: ETFE
Standard: UL758, UL1581
Size AWG | Conductor Construction (No./mm) | Diameter (mm) | Insulation Thickness (mm) | Diameter (mm) |
32 | 7/0.08 | 0.24 | 0.15 | 0.60±0.05 |
30 | 7/0.1 | 0.30 | 0.65±0.05 | |
28 | 7/0.127 | 0.38 | 0.75±0.05 | |
26 | 7/0.16 | 0.48 | 0.85±0.05 | |
24 | 7/0.2 | 0.60 | 0.95±0.05 | |
22 | 7/0.254 | 0.76 | 1.10±0.05 | |
20 | 7/0.32 | 0.96 | 1.30±0.05 |
