GW04-1000
Fongming
1000C 300V Mica Fiberglass Wire
Description
Name:High Temperature Resistance Wire
Model:GW04-1000
Size:18~8AWG
Feature
Ratings Voltage:300V
Rated Temperature: 1000℃

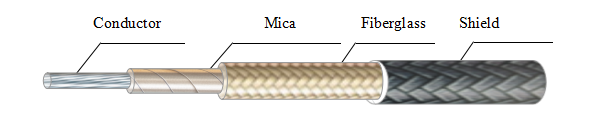

Structure
Conductor: Stranded Nickel
Insulation:Mica Tape
Jacket: Fiberglass Braid With High Temperature Finish
Shield:Stainless Steel
Size AWG | Conductor Structure | Conductor Diameter (mm) | Insulation Thickness (mm) | Insulation Diameter (mm) | Braid Thickness (mm) | Diameter (mm) | Shield Thickness (mm) | OD (mm) |
18 | 17/0.25 | 1.19 | 1.13 | 3.45 | 0.25 | 4.0 | 0.3 | 4.6±0.2 |
16 | 27/0.25 | 1.50 | 1.13 | 3.76 | 0.25 | 4.3 | 0.3 | 4.9±0.2 |
14 | 42/0.25 | 1.87 | 1.13 | 4.13 | 0.25 | 4.6 | 0.3 | 5.2±0.2 |
12 | 67/0.25 | 2.42 | 1.13 | 4.68 | 0.25 | 5.2 | 0.3 | 5.8±0.2 |
10 | 106/0.25 | 3.26 | 1.13 | 5.52 | 0.25 | 6.0 | 0.3 | 6.6±0.3 |
8 | 168/0.25 | 4.10 | 1.35 | 6.80 | 0.25 | 7.3 | 0.3 | 7.9±0.3 |
