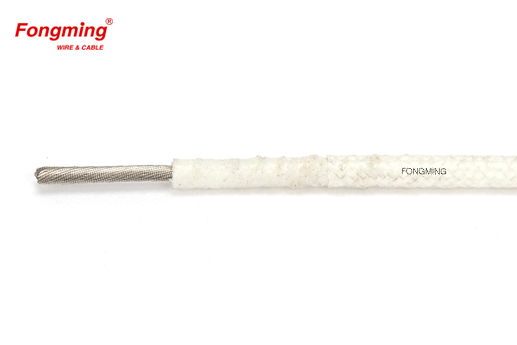

750C 300V Mica Fiberglass Wire

Color: Tan, Red, White, Yellow, Green, Brown, Black, Blue, Pink, etc.
Size: 18AWG, 16AWG, 14AWG, 12AWG, 10AWG, 8AWG
Quantity:
Inquire Add to Basket

  • GW04-750

  • Fongming

750C 300V Mica Fiberglass Wire



Description

Name:High Temperature Resistance Wire

Model:GW04-750

Size:18~8AWG



Feature

Ratings Voltage:300V

Rated Temperature: 750℃



Structure

Conductor: Stranded Nickel

Insulation:Mica Tape

Jacket: Fiberglass Braid With High Temperature Finish



MGT(1)

Size

AWG

Conductor

Structure

Conductor

Diameter

(mm)

Insulation

 Thickness

(mm)

Insulation

Diameter

(mm)

Braid Thickness

(mm)

Diameter

(mm)

18

17/0.25

1.19

0.64

2.47

0.25

3.0±0.2

16

27/0.25

1.50

0.64

2.78

0.25

3.3±0.2

14

42/0.25

1.87

0.64

3.15

0.25

3.7±0.2

12

67/0.25

2.42

0.64

3.70

0.25

4.2±0.2

10

106/0.25

3.26

0.76

4.78

0.25

5.3±0.3

8

168/0.25

4.10

0.76

5.62

0.25

6.1±0.3
