JX-GP
Fongming
J Type Thermocouple wire
Description
Name:Thermocouple wire
Model:J-G-P Type
Size:2*26-2*14AWG

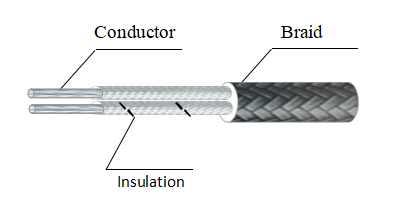

Structure
Conductor:Fe,Cu-Ni
Insulation:Fiberglass Braid and Silicone Resin Coating
Color:Positive White With Black Stripe Negative White
Shield:Stainless Steel Wire
Size (AWG) | Conductor Structure P&N (mm) | Diameter (mm) | Insulation Thickness (mm) | Diameter (mm) | Jacket Thickness (mm) | O.D. (mm) |
2*26 | 7/0.16 | 0.48 | 0.2 | 0.9 | 0.2 | 1.3±0.2*2.0±0.2 |
2*24 | 7/0.2 | 0.6 | 0.2 | 1.0 | 0.2 | 1.4±0.2*2.2±0.2 |
2*22 | 7/0.254 | 0.76 | 0.2 | 1.2 | 0.2 | 1.6±0.2*2.6±0.2 |
2*20 | 7/0.32 | 0.96 | 0.2 | 1.4 | 0.2 | 1.8±0.2*3.0±0.2 |
2*18 | 7/0.39 | 1.17 | 0.2 | 1.6 | 0.2 | 2.0±0.2*3.4±0.2 |
2*16 | 19/0.3 | 1.5 | 0.2 | 1.9 | 0.2 | 2.3±0.2*4.0±0.2 |
2*14 | 19/0.37 | 1.85 | 0.2 | 2.3 | 0.2 | 2.7±0.2*4.8±0.2 |
