JX-FGGP
Fongming
JX Thermocouple Wire
Description
Name:Thermocouple Wire
Model:JX-FG-GP Type
Size:2*26-2*14AWG

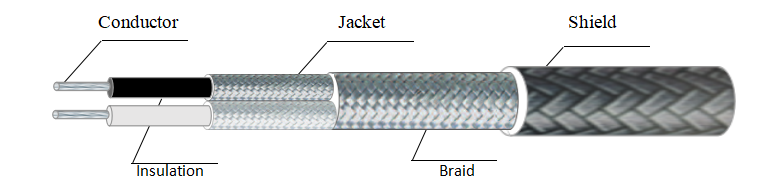

Structure
Conductor:Fe,Cu-Ni
Insulation: FEP
Color: P: Black,N:White
Jacket: Fiberglass Braid With Silicone Resin Coating
Color: P: Black,N:White
Braid: Fiberglass Braid With Silicone Resin Coating
Color:Black
Shield:Stainless Steel Wire
Size (AWG) | Conductor Structure P&N (mm) | Diameter (mm) | Insulation Thickness (mm) | Diameter (mm) | Jacket Thickness (mm) | Diameter (mm) | Braid Thickness (mm) | Diameter (mm) | Shield Thickness (mm) | OD (mm) |
2*26 | 7/0.16 | 0.48 | 0.2 | 0.9 | 0.2 | 1.3 | 0.2 | 1.7*2.8 | 0.2 | 2.1±0.2*3.0±0.2 |
2*24 | 7/0.2 | 0.6 | 0.2 | 1.0 | 0.2 | 1.4 | 0.2 | 1.8*3.0 | 0.2 | 2.2±0.2*3.2±0.2 |
2*22 | 7/0.254 | 0.76 | 0.2 | 1.2 | 0.2 | 1.6 | 0.2 | 2.0*3.4 | 0.2 | 2.4±0.2*3.6±0.2 |
2*20 | 7/0.32 | 0.96 | 0.2 | 1.4 | 0.2 | 1.8 | 0.2 | 2.2*3.8 | 0.2 | 2.6±0.2*4.0±0.2 |
2*18 | 7/0.39 | 1.17 | 0.25 | 1.7 | 0.2 | 2.1 | 0.2 | 2.5*4.4 | 0.2 | 2.9±0.2*4.6±0.2 |
2*16 | 19/0.3 | 1.5 | 0.25 | 2.0 | 0.2 | 2.4 | 0.2 | 2.8*5.0 | 0.2 | 3.2±0.2*5.2±0.2 |
2*14 | 19/0.37 | 1.85 | 0.25 | 2.4 | 0.2 | 2.8 | 0.2 | 3.2*5.8 | 0.2 | 3.6±0.2*6.0±0.2 |
