KX-APA Thermocouple Wire & Cable

Size:2*26-2*14AWG
Color: P: Green,N:White
Package: 305m/roll
Quantity:
  • KX-APA

  • Fongming

KX Thermocouple Wire


Description

Name:Thermocouple wire

Model:KX-A-PA Type

Size:2*26-2*14AWG

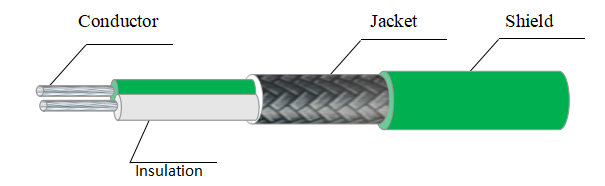

Structure

Conductor: Positive Ni-Cr, NegativeNi-Si

Insulation: PFA

Color: P: Green,N:White

Shield:Stainless Steel Wire

Jacket:PFA

Color: Green


微信截图_20201204105346


Size

(AWG)

Conductor

Structure

P&N  (mm)

Diameter

(mm)

Insulation Thickness

(mm)

Diameter

(mm)

Shield

Thickness

(mm)

Diameter

(mm)

Shield

Thickness

(mm)

O.D.

(mm)

2*26

7/0.16

0.48

0.2

0.9

0.2

1.3*2.0

0.5

2.3±0.2*3.0±0.2

2*24

7/0.2

0.6

0.2

1.0

0.2

1.4*2.2

0.5

2.4±0.2*3.2±0.2

2*22

7/0.254

0.76

0.2

1.2

0.2

1.6*2.6

0.5

2.6±0.2*3.6±0.2

2*20

7/0.32

0.96

0.2

1.4

0.2

1.8*3.0

0.5

2.8±0.2*4.0±0.2

2*18

7/0.39

1.17

0.25

1.7

0.2

2.1*3.6

0.5

3.1±0.2*4.6±0.2

2*16

19/0.3

1.5

0.25

2.0

0.2

2.4*4.2

0.5

3.4±0.2*5.2±0.2

2*14

19/0.37

1.85

0.25

2.4

0.2

2.8*5.0

0.5

3.8±0.2*6.0±0.2
