K-MGG Thermocouple Wire & Cable

Size:2*26-2*14AWG
Color:Positive White With Black Stripe Negative White
Package: 305m/roll

Quantity:



Inquire Add to Basket

Model:
K-MGG
Brand:
Fongming

Product Description

K Type Thermocouple wire

Description

Name:Thermocouple wire

Model：K-MG-G Type

Size:2*26-2*14AWG

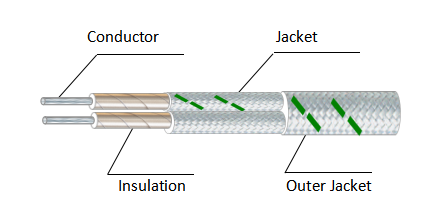

Structure

Conductor：Ni-Cr ,Ni-Si

Insulation：Mica Tape

Jacket:Fiberglass Braid With Silicone Resin Coating

Color:Positive White With Green Stripe Negative White

Outer Jacket:Fiberglass Braid With Silicone Resin Coating

Color: White With Green Stripe

微信截图_20201203114625

Size (AWG)	Conductor Structure P&N (mm)	Diameter (mm)	Insulation Thickness (mm)	Diameter (mm)	Jacket Thickness (mm)	Diameter (mm)	Outer Jacket Thickness (mm)	OD (mm)
2*26	7/0.16	0.48	0.3	1.1	0.2	1.5	0.2	1.9±0.2*3.2±0.2
2*24	7/0.2	0.6	0.3	1.2	0.2	1.6	0.2	2.0±0.2*3.4±0.2
2*22	7/0.25	0.75	0.3	1.4	0.2	1.8	0.2	2.2±0.2*3.8±0.2
2*20	11/0.25	0.96	0.3	1.6	0.2	2.0	0.2	2.4±0.2*4.2±0.2
2*18	17/0.25	1.19	0.3	1.8	0.2	2.2	0.2	2.6±0.2*4.6±0.2
2*16	27/0.25	1.50	0.3	2.1	0.2	2.5	0.2	2.9±0.2*5.2±0.2
2*14	42/0.25	1.87	0.3	2.5	0.2	2.9	0.2	3.3±0.2*6.0±0.2

Mica Wire Thermocouple Wire K Type Thermocouple Wire K Type Thermocouple Cable Type K Thermocouple Wire Type K Thermocouple Cable Type K Fiberglass Cable Type K Fiberglass Wire K Type Fiberglass Cable K Type Fiberglass Wire
