J-MGG Thermocouple Wire & Cable

Size:2*26-2*14AWG Color:Positive White With Black Stripe Negative White Package: 305m/roll
Availability:
Quantity:
  • J-MGG

  • Fongming

J Type Thermocouple wire


Description

Name:Thermocouple wire

Model:J-MG-G Type

Size:2*26-2*14AWG

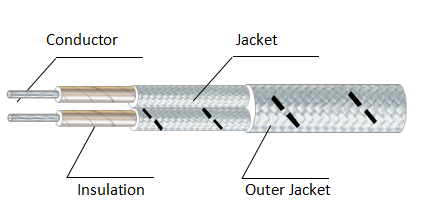

Structure

Conductor:Fe,Cu-Ni

Insulation:Mica Tape

Jacket:Fiberglass Braid With Silicone Resin Coating

Color:Positive White With Black Stripe Negative White

Outer Jacket:Fiberglass Braid With Silicone Resin Coating

Color:White White With Black Stripe


微信截图_20201203112754


Size

(AWG)

Conductor

Structure

P&N  (mm)

Diameter

(mm)

Insulation Thickness

(mm)

Diameter

(mm)

Jacket

Thickness

(mm)

Diameter

(mm)

Outer Jacket

Thickness

(mm)

OD

(mm)

2*26

7/0.16

0.48

0.3

1.1

0.2

1.5

0.2

1.9±0.2*3.2±0.2

2*24

7/0.2

0.6

0.3

1.2

0.2

1.6

0.2

2.0±0.2*3.4±0.2

2*22

7/0.25

0.75

0.3

1.4

0.2

1.8

0.2

2.2±0.2*3.8±0.2

2*20

11/0.25

0.96

0.3

1.6

0.2

2.0

0.2

2.4±0.2*4.2±0.2

2*18

17/0.25

1.19

0.3

1.8

0.2

2.2

0.2

2.6±0.2*4.6±0.2

2*16

27/0.25

1.50

0.3

2.1

0.2

2.5

0.2

2.9±0.2*5.2±0.2

2*14

42/0.25

1.87

0.3

2.5

0.2

2.9

0.2

3.3±0.2*6.0±0.2
