K-GGPF Thermocouple Wire & Cable

Size:2*26-2*14AWG
Color:Positive White With Green Stripe Negative White
Package: 305m/roll

Quantity:



Inquire Add to Basket

Model:
K-GGPF
Brand:
Fongming

Product Description

K Thermocouple Wire

Description

Name:Thermocouple wire

Model: K-G-GPF Type

Size:2*26-2*14AWG

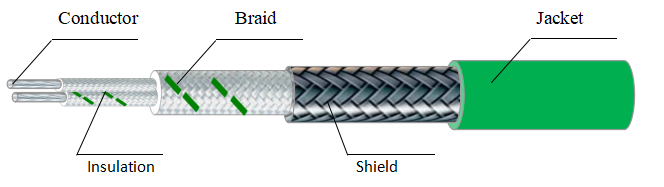

Structure

Conductor: Ni-Cr, Ni-Si

Insulation: Fiberglass with silicone resin coating

Color:Positive White With Green Stripe Negative White

Braid: Fiberglass with silicone resin coating

Color: Green stripe

Shield:Tin-plated Copper

Jacket:FEP

Color: Green

微信截图_20201202164333

Size (AWG)	Conductor Structure P&N (mm)	Diameter (mm)	Insulation Thickness (mm)	Diameter (mm)	Braid Thickness (mm)	Diameter (mm)	Shield Thickness (mm)	Diameter (mm)	Jacket Thickness (mm)	O.D. (mm)
2*26	7/0.16	0.48	0.2	0.9	0.2	1.3*2.0	0.2	1.7*2.2	0.5	2.7±0.2*3.2±0.2
2*24	7/0.2	0.6	0.2	1.0	0.2	1.4*2.2	0.2	1.8*2.4	0.5	2.8±0.2*3.4±0.2
2*22	7/0.254	0.76	0.2	1.2	0.2	1.6*2.6	0.2	2.0*2.8	0.5	3.0±0.2*3.8±0.2
2*20	7/0.32	0.96	0.2	1.4	0.2	1.8*3.0	0.2	2.2*3.2	0.5	3.2±0.2*4.2±0.2
2*18	7/0.39	1.17	0.2	1.6	0.2	2.0*3.4	0.2	2.4*3.6	0.5	3.4±0.2*4.6±0.2
2*16	19/0.3	1.5	0.2	1.9	0.2	2.3*4.0	0.2	2.7*4.2	0.5	3.7±0.2*5.2±0.2
2*14	19/0.37	1.85	0.2	2.3	0.2	2.7*4.8	0.2	3.1*5.0	0.5	4.1±0.2*6.0±0.2
