JX-GGPF
Fongming
JX Thermocouple Wire
Description
Name:Thermocouple wire
Model: JX-G-GPF Type
Size:2*26-2*14AWG

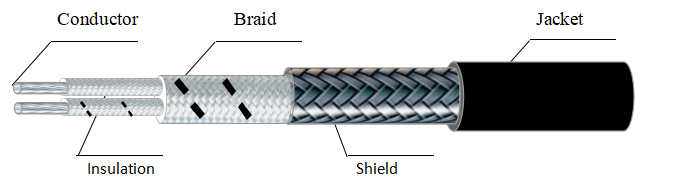

Structure
Conductor:Fe,Cu-Ni
Insulation:Fiberglass Braid and Silicone Resin Coating
Color:Positive White With Black Stripe Negative White
Braid: Fiberglass with silicone resin coating
Color: Black stripe
Shield:Tin-plated Copper
Jacket:FEP
Color: Black
Size (AWG) | Conductor Structure P&N (mm) | Diameter (mm) | Insulation Thickness (mm) | Diameter (mm) | Braid Thickness (mm) | Diameter (mm) | Shield Thickness (mm) | Diameter (mm) | Jacket Thickness (mm) | O.D. (mm) |
2*26 | 7/0.16 | 0.48 | 0.2 | 0.9 | 0.2 | 1.3*2.0 | 0.2 | 1.7*2.2 | 0.5 | 2.7±0.2*3.2±0.2 |
2*24 | 7/0.2 | 0.6 | 0.2 | 1.0 | 0.2 | 1.4*2.2 | 0.2 | 1.8*2.4 | 0.5 | 2.8±0.2*3.4±0.2 |
2*22 | 7/0.254 | 0.76 | 0.2 | 1.2 | 0.2 | 1.6*2.6 | 0.2 | 2.0*2.8 | 0.5 | 3.0±0.2*3.8±0.2 |
2*20 | 7/0.32 | 0.96 | 0.2 | 1.4 | 0.2 | 1.8*3.0 | 0.2 | 2.2*3.2 | 0.5 | 3.2±0.2*4.2±0.2 |
2*18 | 7/0.39 | 1.17 | 0.2 | 1.6 | 0.2 | 2.0*3.4 | 0.2 | 2.4*3.6 | 0.5 | 3.4±0.2*4.6±0.2 |
2*16 | 19/0.3 | 1.5 | 0.2 | 1.9 | 0.2 | 2.3*4.0 | 0.2 | 2.7*4.2 | 0.5 | 3.7±0.2*5.2±0.2 |
2*14 | 19/0.37 | 1.85 | 0.2 | 2.3 | 0.2 | 2.7*4.8 | 0.2 | 3.1*5.0 | 0.5 | 4.1±0.2*6.0±0.2 |
