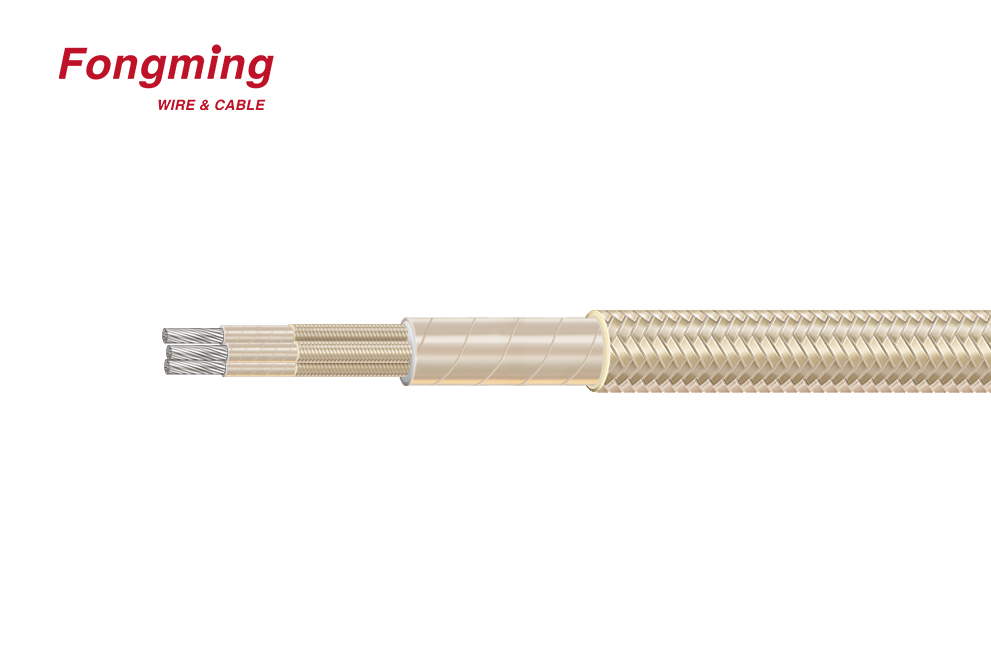

FM-THERMO High Temperature Resistance Wire

Color: Red, White, Yellow, Green, Brown, Black, Blue, Pink, etc. Size:2*22-4*8AWG

Availability:

Quantity:



Inquire Add to Basket

Model:
MGT450-MULTI
Brand:
Fongming

Product Description

Description

Name: Multi High Temperature Resistance Wire

Model:MGT450-MULTI

Size:2*22-4*8AWG

Feature

Ratings Voltage: 600V

Rated Temperature: 450°C

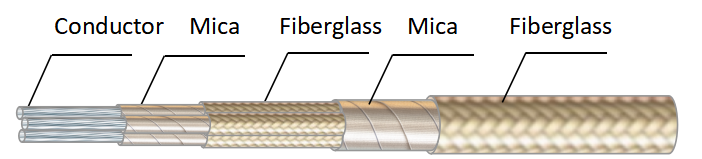

Structure

Conductor: Stranded Nickel Plated Copper27%

Insulation: Mica Tape

Jacket:Fiberglass Braid with High Temperature Finish

Color: Tan

Filler (Optional): Fiberglass

Cabling&Wrapping: Mica Tape

Jacket:Fiberglass Braid with High Temperature Finish

Color: Tan

Standard: UL758, UL1581

222

Size AWG	Conductor Structure	Diameter (mm)	Insulation Thickness (mm)	Diameter (mm)	Jacket Thickness (mm)	Diameter (mm)	Wrapping Thickness (mm)	Diameter (mm)	Jacket Thickness (mm)	OD (mm)
2*22	7/0.254	0.76	0.64	2.0	0.18	2.4±0.1	0.28	5.4	0.13-0.20	5.8±0.3
4*16	26/0.254	1.50		2.8		3.2±0.2	0.28	8.3	0.13-0.20	8.7±0.3
12*16	26/0.254	1.50		2.8		3.2±0.2	0.28	13.9	0.13-0.20	13.3±0.5
16*16	26/0.254	1.50		2.8		3.2±0.2	0.28	15.3	0.69	15.7±0.5
4*12	65/0.254	2.37		3.7		4.1±0.2	0.28	10.5	0.13-0.20	10.9±0.5
4*8	163/0.254	4.11	0.76	5.6	0.38	6.4±0.5	0.28	16.0	0.13-0.2	16.4±0.5

MGT 450°C High Temperature Cable Mica Glass Taped Multicore Wire 450C Heat Resistant Power Cable Fire Resistant Mica Insulated Cable Fiberglass Braided Industrial Oven Wire Nickel Clad Copper High Temp Lead Wire 600V Multicore High Temperature Cable High Temp Motor Lead Cable
