FM-THERMO 550C High Temperature Resistance Cable

Color: Red, White, Yellow, Green, Brown, Black, Blue, Pink, etc. Size:3*18-4*4/0AWG

Availability:

Quantity:



Inquire Add to Basket

Model:
MGT550-MULTI
Brand:
Fongming

Product Description

Description

Name: High Temperature Resistance Cable

Model: MGT550-MULTI

Size: 3*18-4*4/0AWG

Feature

Ratings Voltage: 600V

Rated temperature: 550°C

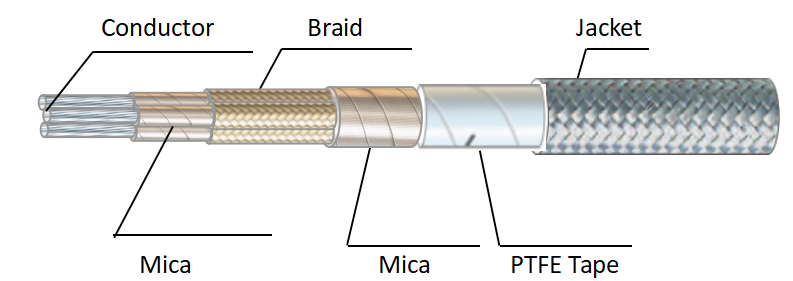

Structure

Conductor: Nickel Plated Copper 27%

Insulation: Mica Tape Wrapping

Jacket: Special Fiberglass Braid with High Temperature Finish

Cabling&Filler (Optional): Fiberglass

Wrapping: Mica tape Wrapping 2 Layers

Wrapping: PTFE Tape

WrappingJacket: Special Fiberglass Braid with Silicone Resin Coating

Color: Black

2800

Size (AWG)	Conductor Structure	Diameter (mm)	Mica Thickness (mm)	Diameter (mm)	Braid Thickness (mm)	Diameter (mm)	Mica Thickness (mm)	Diameter (mm)	PTFE Thickness (mm)	Diameter (mm)	Braid Thickness (mm)	Diameter (mm)
3*18	16/0.254	1.17	0.64	2.5	0.2	2.7	0.3	6.4	0.08	6.6	0.35	7.3±0.3
4*18	16/0.254	1.17	0.64	2.5	0.2	2.7	0.3	7.1	0.08	7.3	0.35	8.0±0.3
3*16	26/0.254	1.50	0.64	2.8	0.2	3.2	0.3	7.5	0.08	7.7	0.35	8.4±0.3
4*16	26/0.254	1.50	0.64	2.8	0.2	3.2	0.3	8.3	0.08	8.5	0.35	9.2±0.3
4*14	41/0.254	1.88	0.64	3.2	0.2	3.6	0.3	9.3	0.08	9.5	0.35	10.2±0.5
3*12	65/0.254	2.37	0.64	3.7	0.2	4.1	0.3	9.4	0.08	9.6	0.35	10.3±0.5
4*12	65/0.254	2.37	0.64	3.7	0.2	4.1	0.3	10.5	0.08	10.7	0.35	11.4±0.5
5*12	65/0.254	2.37	0.64	3.7	0.2	4.1	0.3	11.7	0.08	11.9	0.35	12.6±0.5
4*10	105/0.254	3.30	0.76	4.8	0.2	5.2	0.3	13.2	0.08	13.4	0.35	14.1±0.5
4*8	163/0.254	4.11	0.76	5.6	0.2	6.0	0.3	15.1	0.08	15.3	0.35	16.0±0.5
4*4/0	2080/0.254	14.86	0.89	16.6	0.25	17.1	0.3	41.9	0.08	42.1	0.35	42.8±1.5

MGT 550°C High Temperature Cable 550C Mica Insulated Multi-core Wire High Temp Power Wire 4/0AWG Fiberglass Braided Heat Resistant Cable Mica + PTFE Wrapped Special Cable 600V Ultra High Temp Industrial Wire Lead Wire 550C Resin Coated Fiberglass Shielded Cable Industrial Furnace & Heater Power Cable
