AI Computing Cable · UL3132 Silicone Wire

Color: Red, White, Yellow, Green, Brown, Black, Blue, Pink, etc Size: 30AWG,28AWG,26AWG, 24AWG, 22AWG, 20AWG 16AWG,14AWG,12AWG,10AWG,8AWG,6AWG,4AWG,2AWG,1AWG,1/0AWG,2/0AWG,3/0AWG,4/0AWG Package: 305m/roll

Availability:

Quantity:



Inquire Add to Basket

Model:
UL3132
Brand:
Fongming

Product Description

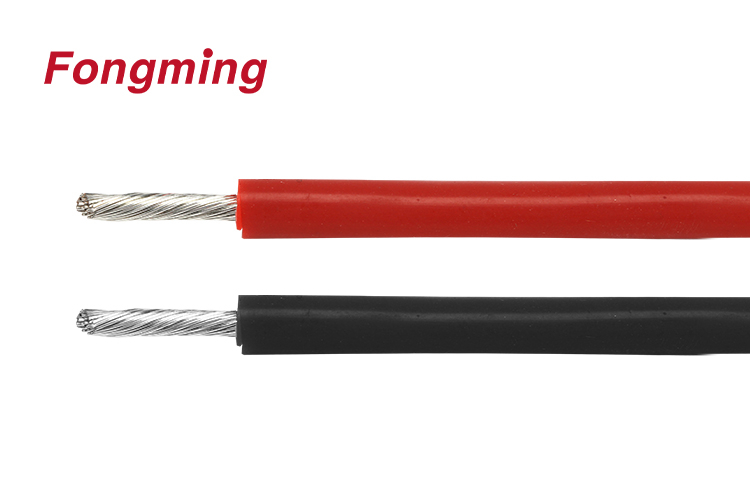

150C 300V UL3132 Silicone Wire

Description

Name:Silicone Insulated Wire

Model:AWM 3132

Size:30~4/0AWG

Feature

Ratings Voltage:300V

Rated Temperature: 150℃

Structure

Conductor:Copper Or Tinned Copper

Insulation:Extruded Silicone Rubber

Color:Blue,Brown,Black,White,Red,Green,Yellow

Standard:UL758、UL1581

UL	3132
CSA/CUL	AWM I A
Rated Temperature	150℃
Rated Voltage	300V
AWG	Conductor Structure (mm)	Insulation Thickness (mm)	Outer Diameter (mm)
30	7/0.1	0.38	1.1±0.1
28	7/0.127		1.2±0.1
26	7/0.16		1.3±0.1
24	7/0.20		1.5±0.1
22	7/0.254		1.6±0.1
20	10/0.254		1.8±0.1
18	16/0.254		2.0±0.1
16	26/0.254		2.4±0.1
14	41/0.254		2.7±0.1
12	65/0.254		3.2±0.1
10	103/0.254		4.1±0.2
8	163/0.254		5.0±0.2
6	260/0.254		6.1±0.3
4	413/0.254		7.4±0.3
2	168/0.5		9.1±0.3
1	212/0.5		10.1±0.5
1/0	268/0.5		11.2±0.5
2/0	342/0.5		12.6±0.5
3/0	430/0.5		14.0±0.5
4/0	538/0.5		15.6±0.5

UL3132 UL3132 Wire silicone rubber wire data center wiring Silicone Wire UL3132 Silicone Wire UL3132 Silicone Cable Silicone Cable high temp hook up wire AI data center cable

About Us

Yangzhou Fongming Cable Factory

Yangzhou Fongming Cable Factory, founded in 1997, is a professional manufacturer of special cables. It is located in Baoying County.

The factory covers an area of 50,000 square meters and a building area of 30,000 square meters. There are 160 employees, including 10 engineering technicians and 12 quality assurance personnel.

We have passed ISO9001:2015 quality system certification, IATF16949-2016 automobile management system certification. Our products have UL, CSA, CCC, CE and other certification. At the same time, it has passed ISO14001:2015 environmental management system and OHSAS 18001:2007 health and safety assurance system certification.
