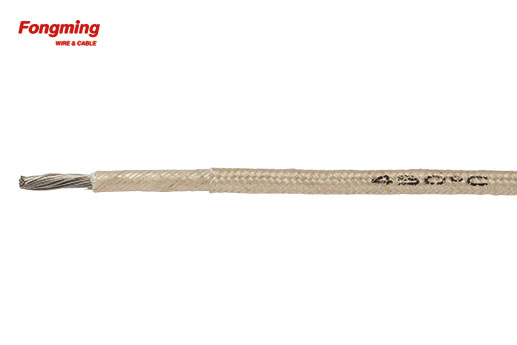

450C 600V Mica Fiberglass Wire

Color: Tan, Red, White, Yellow, Green, Brown, Black, Blue, Pink, etc.
Size: 0.14MM2, 0.22MM2, 0.25MM2, 0.5MM2, 1MM2, 1.5MM2, 2MM2,2.5MM2, 4MM2, 6MM2,10MM2, 16MM2,25MM2
Quantity:
  • MGT 450

  • Fongming

450C 600V Mica Fiberglass Wire



Description

Name:High Temperature Resistance Wire

Size:0.14-25.0mm2



Feature

Ratings Voltage:600V

Rated Temperature: 450℃



Structure

Conductor:Stranded Nickel Copper,Nickel

Insulation:Mica Tape, Fiberglass Braid With High Temperature Finish


MGT(1)

Size

mm2

Conductor

Structure

Diameter

(mm)

Insulation Thickness

(mm)

Diameter

(mm)

Braid

Thickness

(mm)

Diameter

(mm)

0.14

7/0.16

0.48

0.45

1.38

0.2

1.8±0.1

0.22

7/0.2

0.6

0.45

1.5

0.2

1.9±0.1

0.25

7/0.23

0.69

0.45

1.59

0.2

2.0±0.1

0.5

16/0.2

0.92

0.45

1.82

0.2

2.2±0.1

0.75

24/0.2

1.13

0.45

2.03

0.2

2.4±0.1

1.0

32/0.2

1.31

0.45

2.21

0.2

2.6 ±0.1

1.5

30/0.25

1.58

0.45

2.48

0.2

2.9±0.1

2.0

40/0.25

1.83

0.45

2.73

0.2

3.1±0.2

2.5

50/0.25

2.04

0.45

2.94

0.2

3.3±0.2

4.0

56/0.3

2.60

0.45

3.5

0.2

3.9±0.2

6.0

84/0.3

3.18

0.69

4.56

0.25

5.1±0.3

10.0

140/0.3

4.50

0.69

5.88

0.25

6.4±0.3

16.0

224/0.3

5.70

0.69

7.08

0.25

7.6±0.5

25.0

350/0.3

7.15

0.69

8.53

0.25

9.0±0.5
