TGGT
Fongming
250C 300V PTFE Tape Fiberglass TGGT Wire
Description
Name: PTFE Tape Fiberglass Wire
Model: TGGT
Size: 0.14~25mm2
Feature
Ratings Voltage: 300V
Rated temperature: 250℃

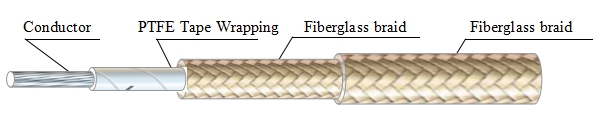

Structure
Conductor: 3% Nickel Plated Copper, Pure Nickel
Insulation: PTFE tape
Inner Jacket: Fiberglass Braid
Jacket: Fiberglass Braid
Size mm2 | Conductor Structure | Diameter (mm) | Insulation Thickness (mm) | Diameter (mm) | Braid Thickness (mm) | Diameter (mm) | Jacket Thickness (mm) | Diameter (mm) |
0.14 | 7/0.16 | 0.48 | 0.1 | 0.68 | 0.2 | 1.08 | 0.2 | 1.5±0.1 |
0.22 | 7/0.2 | 0.6 | 0.1 | 0.8 | 0.2 | 1.2 | 0.2 | 1.6±0.1 |
0.25 | 7/0.23 | 0.69 | 0.1 | 0.89 | 0.2 | 1.29 | 0.2 | 1.7±0.1 |
0.5 | 7/0.3 | 0.9 | 0.1 | 1.1 | 0.2 | 1.5 | 0.2 | 1.9±0.1 |
0.75 | 11/0.3 | 1.15 | 0.1 | 1.35 | 0.2 | 1.75 | 0.2 | 2.2±0.1 |
1.0 | 14/0.3 | 1.30 | 0.21 | 1.72 | 0.2 | 2.12 | 0.2 | 2.5±0.1 |
1.5 | 21/0.3 | 1.59 | 0.21 | 2.01 | 0.2 | 2.41 | 0.2 | 2.8±0.1 |
2.0 | 28/0.3 | 1.83 | 0.21 | 2.25 | 0.2 | 2.65 | 0.2 | 3.1±0.2 |
2.5 | 35/0.3 | 2.05 | 0.21 | 2.47 | 0.2 | 2.87 | 0.2 | 3.3±0.2 |
4.0 | 56/0.3 | 2.60 | 0.21 | 3.02 | 0.2 | 3.42 | 0.2 | 3.8±0.2 |
6.0 | 84/0.3 | 3.18 | 0.21 | 3.6 | 0.2 | 4 | 0.25 | 4.5±0.2 |
10.0 | 140/0.3 | 4.50 | 0.28 | 5.06 | 0.2 | 5.46 | 0.25 | 6.0±0.3 |
16.0 | 224/0.3 | 5.70 | 0.28 | 6.26 | 0.2 | 6.66 | 0.25 | 7.2±0.5 |
25.0 | 350/0.3 | 7.15 | 0.28 | 7.71 | 0.2 | 8.11 | 0.25 | 8.6±0.5 |
