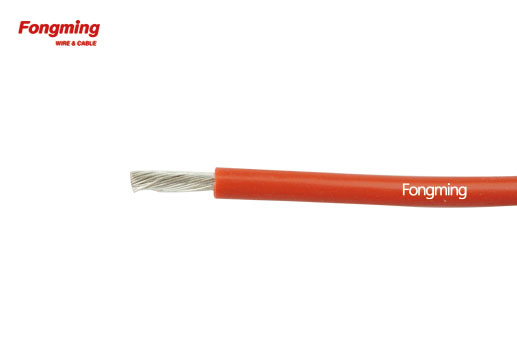

200C 300V UL3586 Silicone Wire

Color: Red, White, Yellow, Green, Brown, Black, Blue, Pink, etc
Size:30AWG,28AWG,26AWG,24AWG,22AWG, 20AWG,18AWG, 16AWG
Package: 305m/roll
Quantity:
Inquire Add to Basket

  • UL3586

  • Fongming

200C 300V UL3586 Silicone Wire



Description

Name:Silicone Insulated Wire

Model:AWM 3586

Size:30~16AWG



Feature

Ratings Voltage:300V

Rated Temperature:200℃



Structure

Conductor:Copper,Nickel Plated Copper,Tinned Copper

Insulation:Extruded Silicone Rubber

Standard:UL758、UL1581





2


Size

AWG

Conductor Structure
(No./mm)

Insulation

Nominal Thickness
(mm)

Diameter
(mm)

30

7/0.1

0.38

1.1±0.1

20

7/0.127

1.2±0.1

26

7/0.16

1.4±0.1

24

7/0.2

1.5±0.1

22

7/0.254

1.6±0.1

20

10/0.254

1.8±0.1

18

16/0.254

2.0±0.1

16

26/0.254

2.4±0.1
