180C 4200V UL3662 Silicone Synthetic Wire

Color: Red, White, Yellow, Green, Brown, Black, Blue, Pink, etc
Size:14AWG,12AWG,10AWG,8AWG,6AWG,4AWG,2AWG,1AWG,1/0AWG,2/0AWG,3/0AWG,4/0AWG,250kcmil AWG,300kcmil AWG,350kcmil AWG,400kcmil AWG,500kcmil AWG,600kcmil AWG,700kcmil AWG,750kcmil AWG,800kcmil AWG
Package: 305m/roll
Quantity:
Inquire Add to Basket

  • UL3662

  • Fongming

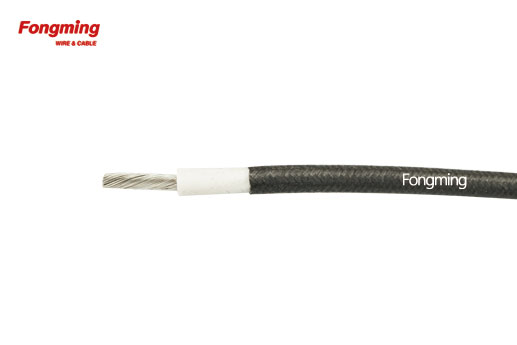

UL3662 Silicone Synthetic Braid Wire



Description

Name:Silicone Synthetic Braid Wire

Model:AWM 3662

Size:14~800kcmil


Feature

Ratings Voltage:4200V

Rated Temperature: 180℃


Structure

Conductor:Tinned Copper

Insulation:Silicone And Synthetic Braid

With Silicone Resin Coating

Standard:UL758、UL1581





Silicone Fiberglass Wire


Size

AWG

Conductor Structure
(No./mm)

Insulation

Nominal Thickness
(mm)

Braid Thickness
(mm)

Diameter
(mm)

14

41/0.254

1.78

0.2

6.0±0.2

12

65/0.254

6.5±0.2

10

103/0.254

0.25

7.4±0.2

8

163/0.254

8.2±0.3

6

260/0.254

9.5±0.3

4

413/0.254

10.8±0.3

2

168/0.5

12.4±0.3

1

212/0.5

13.5±0.3

1/0

268/0.5

14.5±0.3

2/0

342/0.5

16.0±0.4

3/0

430/0.5

17.5±0.5

4/0

538/0.5

2.54

20.5±0.5

250kcmil

633/0.5

0.3

21.7±0.8

300kcmil

760/0.5

23.2±0.8

350kcmil

886/0.5

24.6±0.8

400kcmil

396/0.8

25.9±0.8

500kcmil

495/0.8

3.05

29.3±0.8

600kcmil

594/0.8

31.4±0.8

700kcmil

693/0.8

33.5±0.8

750kcmil

742/0.8

34.4±0.8

800kcmil

792/0.8

35.3±1.0
