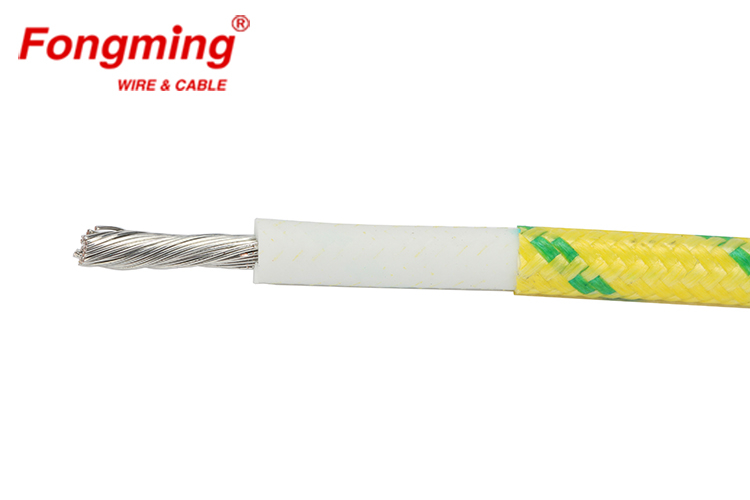

200C 600V UL3071,UL3074,UL3075 Silicone Fiberglass Wire

Color: Red, White, Yellow, Green, Brown, Black, Blue, Pink, etc
Size: 18AWG,16AWG,14AWG,12AWG,10AWG
Package: 305m/roll
Quantity:
Inquire Add to Basket

  • UL3071,UL3074,UL3075

  • Fongming

200C 600V UL3071,UL3074,UL3075 Silicone Fiberglass Wire


Description

Name:Silicone Fiberglass Braid Wire

Model:AWM 3071, 3074, 3075

Size:18~10AWG


Feature

Ratings Voltage:600V

Rated Temperature: 200℃


Structure

Conductor:Tinned Copper

Insulation:Silicone And Fiberglass Braid

with High Temperature Finish

Standard:UL758、UL1581


Silicone Fiberglass Wire


Conductor

Insulation

Style

Size
(AWG)

Conductor Structure
(No./mm)

Nominal Thickness
(mm )

Braid Thickness
(mm)

Nominal  Diameter
(mm)

3071

18

16/0.254

    ≥0.76

 ≥0.2

3.2±0.1

16

26/0.254

3.5±0.1

14

41/0.254

3.9±0.1

3074

12

65/0.254

≥0.76

 ≥0.2

4.5±0.2

3075

10

103/0.254

 ≥1.14

 ≥0.25

6.0±0.2
