EV-180C-1500V-NS
Fongming
180C 1500V Silicone Rubber EV Cable
Description
Name:EV No Shield Silicone Rubber Cable
Size:16-70.0mm2
Feature
Rated Voltage:1500V
Rated Temperature:180℃

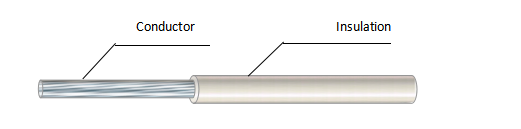

Structure
Conductor: Copper,Tinned Copper
Insulation: Silicone Rubber
Conductor |
Insulation | Electrical Properties | ||
mm2 | Conductor Construction NO.xфmm | Diameter mm | Outer Diameter mm | Max.Conductor Resistance DC 20℃ Ω/km |
16 | 513/0.20 | 5.5 | 8.0 | 1.16 |
25 | 798/0.20 | 7.0 | 9.8 | 0.74 |
35 | 1121/0.20 | 8.0 | 11.4 | 0.53 |
50 | 1592/0.20 | 9.6 | 13.5 | 0.37 |
70 | 2257/0.20 | 11.2 | 17.0 | 0.26 |
