EV-125/150C-1500V-S
Fongming

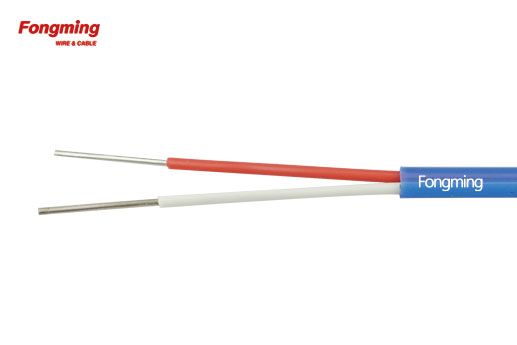

125C 150C 1500V TPE Insulated Shield EV Cable
Description
Name:EV Shield Insulated Cable
Size:0.5-70.0mm2
Feature
Rated Voltage:1500V
Rated Temperature:125/150℃
Structure
Conductor: Copper,Tinned Copper
Insulation: TPE/ Cross-linked Polyolefin
Shield:Tinned Copper，Al-Tape
Jacket:TPE/ Cross-linked Polyolefin
Conductor | Insulation | Shield&Wrap | Jacket Diameter mm | Electrical Properties | |||
mm2 | Conductor Construction NO.xфmm | Diameter mm | Outer Diameter mm | Shield Diameter mm | Wrap | Jacket Diameter mm | Max.Conductor Resistance DC 20℃Ω/km |
0.5 | 16/0.20 | 0.90 | 2.9 | Tinned Copper | Al-mylar | 5.7 | 37.1 |
0.75 | 24/0.20 | 1.10 | 3.1 | Tinned Copper | Al-mylar | 5.9 | 24.7 |
1.0 | 65/0.15 | 1.30 | 3.7 | Tinned Copper | Al-mylar | 6.7 | 18.5 |
1.5 | 49/0.20 | 1.60 | 4.0 | Tinned Copper | Al-mylar | 7 | 12.7 |
2.0 | 64/0.20 | 1.85 | 4.3 | Tinned Copper | Al-mylar | 6.25 | 9.42 |
2.5 | 79/0.20 | 2.10 | 4.3 | Tinned Copper | Al-mylar | 7.0 | 7.6 |
3.0 | 98/0.20 | 2.45 | 4.9 | Tinned Copper | Al-mylar | 7.85 | 6.15 |
4.0 | 133/0.2 | 2.85 | 4.9 | Tinned Copper | Al-mylar | 7.5 | 4.71 |
6.0 | 190/0.2 | 3.50 | 5.6 | Tinned Copper | Al-mylar | 8.2 | 3.14 |
10.0 | 323/0.20 | 4.50 | 6.9 | Tinned Copper | Al-mylar | 9.9 | 1.82 |
16.0 | 513/0.2 | 5.70 | 7.8 | Tinned Copper | Al-mylar | 11.1 | 1.16 |
25.0 | 879/0.19 | 7.2 | 9.4 | Tinned Copper | Al-mylar | 12.6 | 0.74 |
35.0 | 1228/0.19 | 8.40 | 11.0 | Tinned Copper | Al-mylar | 14.0 | 0.53 |
50.0 | 1755/0.19 | 10.0 | 12.6 | Tinned Copper | Al-mylar | 16.5 | 0.37 |
70.0 | 2479/0.19 | 11.9 | 14.6 | Tinned Copper | Al-mylar | 18.3 | 0.26 |
125C 150C 1500V TPE Insulated Shield EV Cable
Description
Name:EV Shield Insulated Cable
Size:0.5-70.0mm2
Feature
Rated Voltage:1500V
Rated Temperature:125/150℃
Structure
Conductor: Copper,Tinned Copper
Insulation: TPE/ Cross-linked Polyolefin
Shield:Tinned Copper，Al-Tape
Jacket:TPE/ Cross-linked Polyolefin
Conductor | Insulation | Shield&Wrap | Jacket Diameter mm | Electrical Properties | |||
mm2 | Conductor Construction NO.xфmm | Diameter mm | Outer Diameter mm | Shield Diameter mm | Wrap | Jacket Diameter mm | Max.Conductor Resistance DC 20℃Ω/km |
0.5 | 16/0.20 | 0.90 | 2.9 | Tinned Copper | Al-mylar | 5.7 | 37.1 |
0.75 | 24/0.20 | 1.10 | 3.1 | Tinned Copper | Al-mylar | 5.9 | 24.7 |
1.0 | 65/0.15 | 1.30 | 3.7 | Tinned Copper | Al-mylar | 6.7 | 18.5 |
1.5 | 49/0.20 | 1.60 | 4.0 | Tinned Copper | Al-mylar | 7 | 12.7 |
2.0 | 64/0.20 | 1.85 | 4.3 | Tinned Copper | Al-mylar | 6.25 | 9.42 |
2.5 | 79/0.20 | 2.10 | 4.3 | Tinned Copper | Al-mylar | 7.0 | 7.6 |
3.0 | 98/0.20 | 2.45 | 4.9 | Tinned Copper | Al-mylar | 7.85 | 6.15 |
4.0 | 133/0.2 | 2.85 | 4.9 | Tinned Copper | Al-mylar | 7.5 | 4.71 |
6.0 | 190/0.2 | 3.50 | 5.6 | Tinned Copper | Al-mylar | 8.2 | 3.14 |
10.0 | 323/0.20 | 4.50 | 6.9 | Tinned Copper | Al-mylar | 9.9 | 1.82 |
16.0 | 513/0.2 | 5.70 | 7.8 | Tinned Copper | Al-mylar | 11.1 | 1.16 |
25.0 | 879/0.19 | 7.2 | 9.4 | Tinned Copper | Al-mylar | 12.6 | 0.74 |
35.0 | 1228/0.19 | 8.40 | 11.0 | Tinned Copper | Al-mylar | 14.0 | 0.53 |
50.0 | 1755/0.19 | 10.0 | 12.6 | Tinned Copper | Al-mylar | 16.5 | 0.37 |
70.0 | 2479/0.19 | 11.9 | 14.6 | Tinned Copper | Al-mylar | 18.3 | 0.26 |
