150C 600V UL3529 Silicone Wire

Color: Red, White, Yellow, Green, Brown, Black, Blue, Pink, etc
Size: 26AWG, 24AWG, 22AWG, 20AWG,18AWG, 16AWG,14AWG,12AWG,10AWG,8AWG,6AWG,4AWG,2AWG,1AWG,1/0AWG,2/0AWG,3/0AWG,4/0AWG,250kcmil AWG,300kcmil AWG,350kcmil AWG,400kcmil AWG,500kcmil AWG,600kcmil AWG,700kcmil AWG, 750kcmil AWG
Package: 305m/roll

  • UL3529
  • Fongming
Product Description

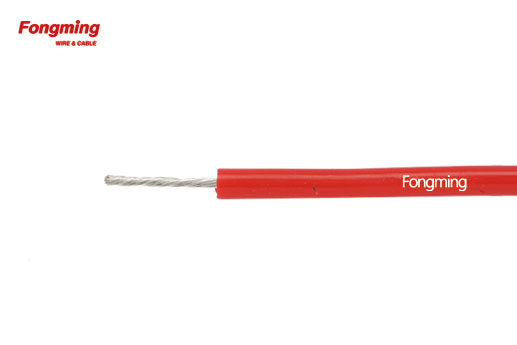

150C 600V UL3529 Silicone Wire


Description

Name:Silicone Insulated Wire

Model:AWM 3529

Size:26~750kcmil


Feature

Ratings Voltage:600V

Rated Temperature: 150℃


Structure

Conductor: Tinned Copper

Insulation:Extruded Silicone Rubber

Color:Blue,Brown,Black,White,Red,Green,Yellow

Standard:UL758、UL1581


2


Conductor

AWG

Conductor

Construction

(No./mm)

Insulation Thickness

(mm)

Diameter

(mm)

26

7/0.16

0.76



2.1±0.1

24

7/0.2or19/0.12

2.2±0.1

22

7/0.254

2.4±0.1

20

10/0.254

2.6±0.1

18

16/0.254

2.8±0.1

16

26/0.254

3.1±0.1

14

41/0.254

3.5±0.1

12

65/0.254

4.0±0.1

10

103/0.254

1.14

5.6±0.2

8

163/0.254

1.52

7.3±0.2

6

260/0.254

8.4±0.3

4

413/0.254

9.7±0.3

2

168/0.5

11.4±0.3

1

212/0.5

2.03

13.5±0.4

1/0

268/0.5

14.7±0.4

2/0

342/0.5

16.0±0.4

3/0

430/0.5

17.5±0.5

4/0

538/0.5

19.0±0.5

250kcmil

633/0.5

2.41

20.8±0.8

300kcmil

760/0.5

22.4±0.8

350kcmil

886/0.5

23.8±0.8

400kcmil

396/0.8

25.1±0.8

500kcmil

495/0.8

27.4±0.8

600kcmil

594/0.8

2.79

30.3±1.0

700kcmil

693/0.8

32.3±1.0

750kcmil

742/0.8

33.2±1.0
