150C 300V UL3140 Silicone Wire

Color: Red, White, Yellow, Green, Brown, Black, Blue, Pink, etc
Size: 26AWG, 24AWG, 22AWG, 20AWG
Package: 305m/roll
Quantity:
Inquire Add to Basket

  • UL3140

  • Fongming

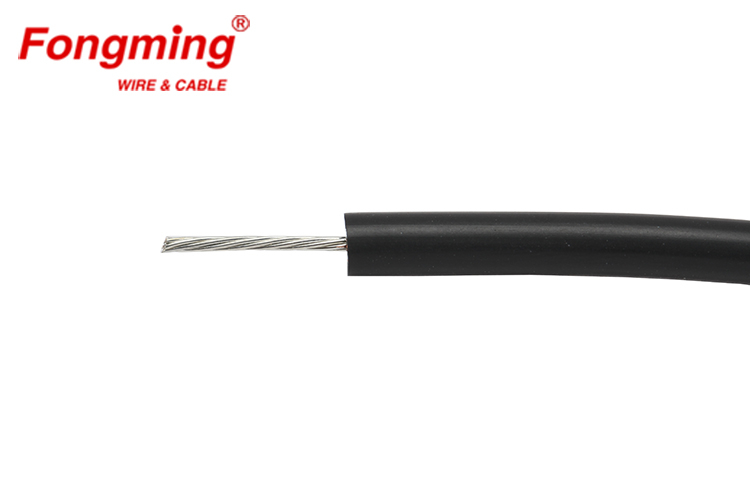

150C 300V UL3140 Silicone Wire



Description

Name:Silicone Insulated Wire

Model:AWM 3140

Size:26~20AWG



Feature

Ratings Voltage:300V

Rated Temperature: 150℃



Structure

Conductor:Nickel plated Copper

Insulation:Extruded Silicone Rubber

Color:Blue,Brown,Black,White,Red,Green,Yellow

Standard:UL758、UL1581


2


Size

(AWG)

Conductor

Construction

(No./mm)

Insulation

lthickness (mm)

Diameter

(mm)

Max.

Conductor

Resistance

(at 20℃ Ω/km)

26

7/0.16

 ≥1.52

3.6±0.1

150

24

7/0.20

3.8±0.1

94.2

22

7/0.254

3.9±0.1

59.4

20

10/0.254

4.1±0.1

37.4
