150C 180C 6900V UL3642 Silicone Synthetic Wire

Color: Red, White, Yellow, Green, Brown, Black, Blue, Pink, etc
Size:16AWG,14AWG,12AWG,10AWG,8AWG,6AWG,4AWG,2AWG,1AWG,1/0AWG,2/0AWG,3/0AWG,4/0AWG,250kcmil AWG,300kcmil AWG,350kcmil AWG,400kcmil AWG,500kcmil AWG,600kcmil AWG
Package: 305m/roll

Quantity:



Inquire Add to Basket

Model:
UL3642
Brand:
Fongming

Product Description

150C 180C 6900V UL3642 Silicone Synthetic Braid Wire

Description

Name:Silicone Synthetic Braid Wire

Model:AWM 3642

Size:16~600kcmil

Feature

Ratings Voltage:6900V

Rated Temperature: 150/180℃

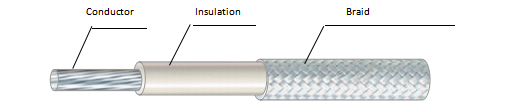

Structure

Conductor:Tinned Copper

Insulation:Silicone And Synthetic Braid

With Silicone Resin Coating

Standard:UL758、UL1581

Silicone Fiberglass Wire

Size AWG	Conductor Structure (No./mm)	Insulation Nominal Thickness (mm)	Braid Thickness (mm)	Diameter (mm)
16	26/0.254	2.18	0.2	6.4±0.2
14	41/0.254			6.8±0.2
12	65/0.254			7.3±0.2
10	103/0.254		0.25	8.2±0.3
8	163/0.254			9.1±0.3
6	260/0.254			10.2±0.3
4	413/0.254			11.5±0.3
2	168/0.5			13.3±0.4
1	212/0.5			14.3±0.4
1/0	268/0.5			15.5±0.4
2/0	342/0.5			16.7±0.4
3/0	430/0.5			18.3±0.5
4/0	538/0.5			19.8±0.5
250kcmil	633/0.5		0.3	21.0±0.8
300kcmil	760/0.5			21.5±0.8
350kcmil	886/0.5			23.9±0.8
400kcmil	396/0.8			25.2±0.8
500kcmil	495/0.8			27.6±0.8
600kcmil	594/0.8	2.79		31.0±0.8
