105C PVDF Insulated Wire

Color: Red, White, Yellow, Green, Brown, Black, Blue, Pink, etc. Size:2*28AWG

Availability:

Quantity:



Inquire Add to Basket

Model:
MR-1529
Brand:
Fongming

Product Description

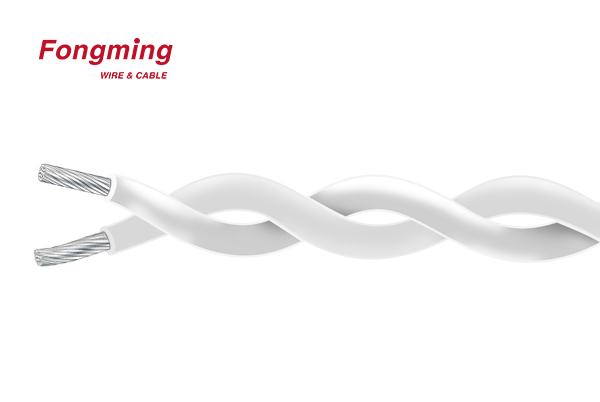

105C PVDF Insulated Wire

Description

Name:PVDF wire

Size:2*28AWG

Feature

Rated temperature: 105°C

Structure

Conductor:Silver Plated Copper

Insulation:PVDF

Color:White

Twisting Pitch6.5mm

PVDF

Size

(AWG)

Conductor

Structure

P&N (mm)

Insulation

Thickness

(mm)

Diameter

(mm)

O.D.

(mm)

2*28

1/0.32

0.14

0.6±0.02

1.2±0.05

PVDF Insulated Wire Kynar Wire Wrap Polyvinylidene Fluoride Wire Single Core Hook-up Wire Silver Plated Copper PVDF Wire Aerospace Grade High Temp Wire Medical Grade PVDF Wire Thin Wall PVDF Cable Chemical Resistant Wire
