Description
Name:ETFE Wire
Model:AWM 1513
Size:36~20AWG
Feature
Rated temperature: 105℃

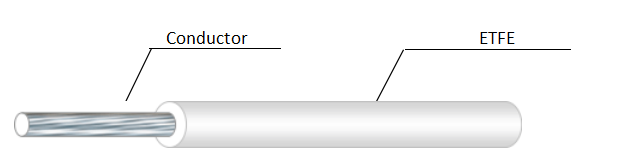

Structure
Conductor:Bare Copper, Tinned Copper
Insulation:Extruded ETFE
Standard:UL758、UL1581
Size AWG | Conductor Construction (No./mm) | Diameter (mm) | Insulation Thickness (mm) | Outer Diameter (mm) |
36 | 7/0.05 | 0.15 | 0.13 | 0.45±0.05 |
34 | 7/0.06 | 0.18 | 0.50±0.05 | |
32 | 7/0.08 | 0.24 | 0.55±0.05 | |
30 | 7/0.1 | 0.30 | 0.60±0.05 | |
28 | 7/0.127 | 0.38 | 0.70±0.05 | |
26 | 7/0.16 | 0.48 | 0.80±0.05 | |
24 | 7/0.2 | 0.60 | 0.90±0.05 | |
22 | 7/0.254 | 0.76 | 1.05±0.05 | |
20 | 7/0.32 | 0.96 | 1.25±0.05 |
