Description
Name:Multi ETFE Insulated Shield PVC Jacket Cable
Model: AWM21877
Size: 2 * 18 ~ 7 * 14AWG
Feature
Rated temperature: 105 ° C
Rated voltage: 300V

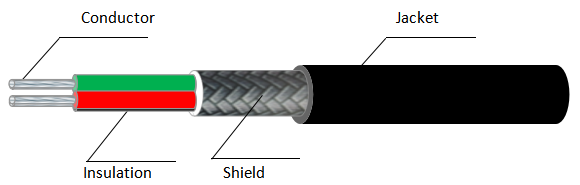

Structure
Conductor: bare copper wire, tinned wire
Insulation: ETFE
Shield：Tinned Copper
Jacket:PVC
Size (AWG) | Conductor Structure (mm) | Diameter (mm) | Insulation Thickness (mm) | Diameter (mm) | Cabling Diameter | Shield Thickness (mm) | Diameter (mm) | Jacket Thickness (mm) | O.D. (mm) |
2*18 | 7/0.39 | 1.17 | 0.15 | 1.50 | 3.0 | 0.2 | 3.4 | 0.18 | 3.8±0.2 |
3*18 | 7/0.39 | 1.17 | 0.15 | 1.50 | 3.2 | 0.2 | 3.6 | 0.18 | 4.0±0.2 |
4*18 | 7/0.39 | 1.17 | 0.15 | 1.50 | 3.6 | 0.2 | 4.0 | 0.18 | 4.4±0.2 |
5*18 | 7/0.39 | 1.17 | 0.15 | 1.50 | 4.1 | 0.2 | 4.5 | 0.18 | 4.9±0.3 |
6*18 | 7/0.39 | 1.17 | 0.15 | 1.50 | 4.2 | 0.2 | 4.6 | 0.18 | 5.0±0.3 |
7*18 | 7/0.39 | 1.17 | 0.15 | 1.50 | 4.5 | 0.2 | 4.9 | 0.18 | 5.3±0.3 |
2*16 | 19/0.3 | 1.50 | 0.15 | 1.80 | 3.6 | 0.2 | 4.0 | 0.18 | 4.4±0.2 |
3*16 | 19/0.3 | 1.50 | 0.15 | 1.80 | 3.9 | 0.2 | 4.3 | 0.18 | 4.7±0.3 |
4*16 | 19/0.3 | 1.50 | 0.15 | 1.80 | 4.4 | 0.2 | 4.8 | 0.18 | 5.2±0.3 |
5*16 | 19/0.3 | 1.50 | 0.15 | 1.80 | 4.9 | 0.2 | 5.3 | 0.18 | 5.7±0.3 |
6*16 | 19/0.3 | 1.50 | 0.15 | 1.80 | 5.0 | 0.2 | 5.4 | 0.18 | 5.8±0.3 |
7*16 | 19/0.3 | 1.50 | 0.15 | 1.80 | 5.4 | 0.2 | 5.8 | 0.18 | 6.2±0.3 |
2*14 | 19/0.37 | 1.85 | 0.15 | 2.15 | 4.3 | 0.2 | 4.7 | 0.18 | 5.1±0.3 |
3*14 | 19/0.37 | 1.85 | 0.15 | 2.15 | 4.6 | 0.2 | 5.0 | 0.18 | 5.4±0.3 |
4*14 | 19/0.37 | 1.85 | 0.15 | 2.15 | 5.2 | 0.2 | 5.6 | 0.18 | 6.0±0.3 |
5*14 | 19/0.37 | 1.85 | 0.15 | 2.15 | 5.8 | 0.2 | 6.2 | 0.18 | 6.6±0.5 |
6*14 | 19/0.37 | 1.85 | 0.15 | 2.15 | 6.0 | 0.2 | 6.4 | 0.18 | 6.8±0.5 |
7*14 | 19/0.37 | 1.85 | 0.15 | 2.15 | 6.5 | 0.2 | 6.9 | 0.18 | 7.3±0.5 |
