JX-GTGG Thermocouple Wire & Cable

Color:Positive :White With Black Stripe Negative :White Size:2*26-2*14AWG Package: 305m/roll

Availability:

Quantity:



Inquire Add to Basket

Model:
JX-GTGG
Brand:
Fongming

Product Description

JX Type Thermocouple wire

Description

Name:Thermocouple wire

Model：J-GTG-G Type

Size:2*26-2*14AWG

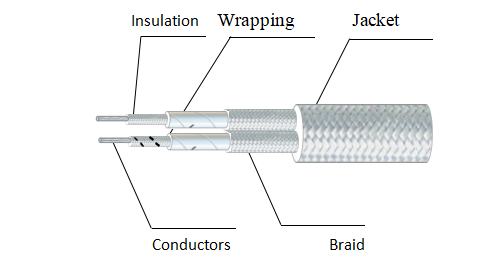

Structure

Conductor：Positive Ni-Cr, Negative Copel

Insulation:Fiberglass Braid With Silicone Resin Coating

Color:Positive :White With Black Stripe Negative :White

Wrapping:PTFE Tape

Braid:Fiberglass Braid With Silicone Resin Coating

Color:P&N:White

Jacket：Fiberglass Braid With Silicone Resin Coating

Color:White

微信截图_20201202103403

Size (AWG)	Conductor Structure P&N (mm)	Diameter (mm)	Insulation Thickness (mm)	Diameter (mm)	Wrapping Thickness (mm)	Diameter (mm)	Braid Thickness (mm)	Diameter (mm)	Jacket Thickness (mm)	Diameter (mm)
2*26	7/0.16	0.48	0.2	0.9	0.1	1.1	0.2	1.5	0.2	1.9±0.2*3.4±0.2
2*24	7/0.2	0.6	0.2	1.0	0.1	1.2	0.2	1.6	0.2	2.0±0.2*3.6±0.2
2*22	7/0.25	0.75	0.2	1.2	0.1	1.4	0.2	1.8	0.2	2.2±0.2*4.0±0.2
2*20	11/0.25	0.96	0.2	1.4	0.1	1.6	0.2	2.0	0.2	2.4±0.2*4.4±0.2
2*18	17/0.25	1.19	0.2	1.6	0.1	1.8	0.2	2.2	0.2	2.6±0.2*4.8±0.2
2*16	27/0.25	1.50	0.2	1.9	0.1	2.1	0.2	2.5	0.2	2.9±0.2*5.4±0.2
2*14	42/0.25	1.87	0.2	2.3	0.1	2.5	0.2	2.9	0.2	3.3±0.2*6.2±0.2
