J-SSSS
Fongming
J Type Thermocouple wire
Description
Name:Thermocouple wire
Model:J-SS-SS Type
Size:2*26-2*14AWG

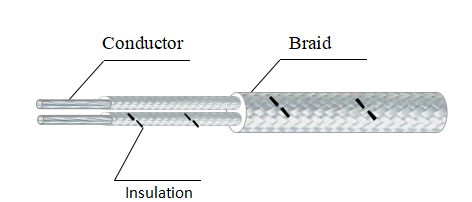

Structure
Conductor:Fe,Cu-Ni
Insulation:Quartz Braid and Silicone Resin Coating
Color:Positive White With Black Stripe Negative White
Jacket:Quartz Braid and Silicone Resin Coating
Color:White White With Black Stripe
Size (AWG) | Conductor Structure P&N (mm) | Diameter (mm) | Insulation Thickness (mm) | Diameter (mm) | Braid Thickness (mm) | O.D. (mm) |
2*26 | 7/0.16 | 0.48 | 0.2 | 0.9 | 0.2 | 1.3±0.2*2.0±0.2 |
2*24 | 7/0.2 | 0.6 | 0.2 | 1.0 | 0.2 | 1.4±0.2*2.2±0.2 |
2*22 | 7/0.25 | 0.75 | 0.2 | 1.2 | 0.2 | 1.6±0.2 *2.6±0.2 |
2*20 | 11/0.25 | 0.96 | 0.2 | 1.4 | 0.2 | 1.8±0.2 *3.0±0.2 |
2*18 | 17/0.25 | 1.19 | 0.2 | 1.6 | 0.2 | 2.0±0.2 *3.4±0.2 |
2*16 | 27/0.25 | 1.50 | 0.2 | 1.9 | 0.2 | 2.3 ±0.2*4.0±0.2 |
2*14 | 42/0.25 | 1.87 | 0.2 | 2.3 | 0.2 | 2.7 ±0.2*4.8 ±0.2 |
J Type Thermocouple wire
Description
Name:Thermocouple wire
Model:J-SS-SS Type
Size:2*26-2*14AWG
Structure
Conductor:Fe,Cu-Ni
Insulation:Quartz Braid and Silicone Resin Coating
Color:Positive White With Black Stripe Negative White
Jacket:Quartz Braid and Silicone Resin Coating
Color:White White With Black Stripe
Size (AWG) | Conductor Structure P&N (mm) | Diameter (mm) | Insulation Thickness (mm) | Diameter (mm) | Braid Thickness (mm) | O.D. (mm) |
2*26 | 7/0.16 | 0.48 | 0.2 | 0.9 | 0.2 | 1.3±0.2*2.0±0.2 |
2*24 | 7/0.2 | 0.6 | 0.2 | 1.0 | 0.2 | 1.4±0.2*2.2±0.2 |
2*22 | 7/0.25 | 0.75 | 0.2 | 1.2 | 0.2 | 1.6±0.2 *2.6±0.2 |
2*20 | 11/0.25 | 0.96 | 0.2 | 1.4 | 0.2 | 1.8±0.2 *3.0±0.2 |
2*18 | 17/0.25 | 1.19 | 0.2 | 1.6 | 0.2 | 2.0±0.2 *3.4±0.2 |
2*16 | 27/0.25 | 1.50 | 0.2 | 1.9 | 0.2 | 2.3 ±0.2*4.0±0.2 |
2*14 | 42/0.25 | 1.87 | 0.2 | 2.3 | 0.2 | 2.7 ±0.2*4.8 ±0.2 |
