KX-FFP Thermocouple Wire & Cable
Home » Products » Thermocouple Wire&Cable » K Type » KX-FFP » KX-FFP Thermocouple Wire & Cable

KX-FFP Thermocouple Wire & Cable

Size:2*26-2*14AWG
Color: P: Green,N:White
Package: 305m/roll
  • KX-FFP
  • Fongming
Product Description

JX Thermocouple Wire


Description

Name:Thermocouple Wire

Model:JX-F-FP Type

Size:2*26-2*14AWG

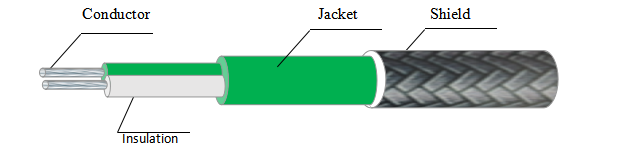

Structure

Conductor:Fe,Cu-Ni

Insulation: FEP

Color: P: Black,N:White

Jacket: FEP

Color:Black

Shield:Stainless Steel Wire


微信截图_20201127155537


Size

(AWG)

Conductor

Structure

P&N  (mm)

Diameter

(mm)

Insulation Thickness

(mm)

Diameter

(mm)

Jacket

Thickness

(mm)

Diameter

(mm)

Shield

Thickness

(mm)

O.D.

(mm)

2*26

7/0.16

0.48

0.2

0.9

0.3

1.5*2.4

0.2

1.9±0.2*2.6±0.2

2*24

7/0.2

0.6

0.2

1.0

0.3

1.6*2.6

0.2

2.0±0.2*2.8±0.2

2*22

7/0.254

0.76

0.2

1.2

0.3

1.8*3.0

0.2

2.2±0.2*3.2±0.2

2*20

7/0.32

0.96

0.2

1.4

0.3

2.0*3.4

0.2

2.4±0.2*3.6±0.2

2*18

7/0.39

1.17

0.25

1.7

0.4

2.5*4.2

0.2

2.9±0.2*4.4±0.2

2*16

19/0.3

1.5

0.25

2.0

0.4

2.8*4.8

0.2

3.2±0.2*5.0±0.2

2*14

19/0.37

1.85

0.25

2.4

0.4

3.2*5.6

0.2

3.6±0.2*5.8±0.2
