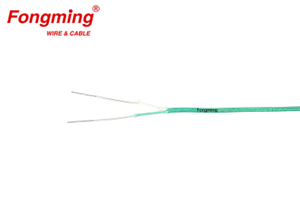

KX-CGP Thermocouple Wire & Cable

Size:2*26-2*14AWG
Color:Positive White With Green Stripe Negative White
Package: 305m/roll
Quantity:
  • KX-CGP

  • Fongming

KX Type Thermocouple wire


Description

Name:Thermocouple wire

Model:KX-CG-P Type

Size:2*26-2*10AWG


Structure

Conductor:Ni-Cr ,Ni-Si

Inner Insulation:Fiberglass Wrapping and Silicone Resin Coating

Outer Insulation:Fiberglass Braid  and Silicone Resin Coating

Color:Positive White With Green Stripe Negative White

Shield:Stainless Steel


微信截图_20201204165559


Size

(AWG)

Conductor

Structure

P&N  (mm)

Diameter

(mm)

Inner

Insulation

Thickness

(mm)

Diameter

(mm)

Outer

Insulation Thickness

(mm)

Diameter

(mm)

Jacket

Thickness

(mm)

O.D.

(mm)

2*26

7/0.16

0.48

0.13

0.74

0.2

1.1

0.2

1.5±0.2*2.4±0.2

2*24

7/0.2

0.6

0.13

0.86

0.2

1.3

0.2

1.7±0.2*2.8±0.2

2*22

7/0.254

0.76

0.13

1.02

0.2

1.4

0.2

1.8±0.2*3.0±0.2

2*20

7/0.32

0.96

0.13

1.22

0.2

1.6

0.2

2.0±0.2*3.4±0.2

2*18

7/0.39

1.17

0.13

1.43

0.2

1.8

0.2

2.2±0.2*3.8±0.2

2*16

19/0.3

1.5

0.13

1.76

0.2

2.2

0.2

2.6±0.2*4.6±0.2

2*14

19/0.37

1.85

0.13

2.11

0.2

2.5

0.2

2.9±0.2*5.2±0.2
