KX-AGGP Thermocouple Wire & Cable

Size:2*26-2*14AWG
Color: P: Green,N:White
Package: 305m/roll
Quantity:
  • KX-AGGP
  • Fongming

KX Thermocouple Wire


Description

Name:Thermocouple wire

Model:KX-AG-GP Type

Size:2*26-2*14AWG

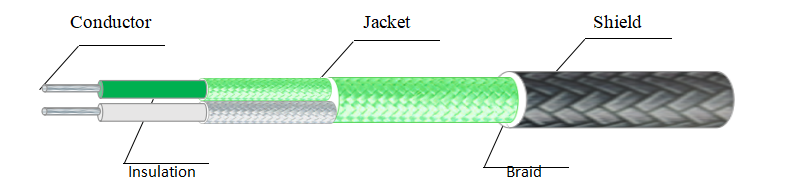

Structure

Conductor: Positive Ni-Cr, NegativeNi-Si

Insulation: PFA

Color: P: Green,N:White

Jacket: Fiberglass Braid With Silicone Resin Coating

Color: P: Green,N:White

Braid: Fiberglass Braid With Silicone Resin Coating

Color:Green

Shield:Stainless Steel Wire


微信截图_20201204102729


Size

(AWG)

Conductor

Structure

P&N  (mm)

Diameter

(mm)

Insulation Thickness

(mm)

Diameter

(mm)

Jacket

Thickness

(mm)

Diameter

(mm)

Braid

Thickness

(mm)

Diameter

(mm)

Shield

Thickness

(mm)

OD

(mm)

2*26

7/0.16

0.48

0.2

0.9

0.2

1.3

0.2

1.7*2.8

0.2

2.1±0.2*3.0±0.2

2*24

7/0.2

0.6

0.2

1.0

0.2

1.4

0.2

1.8*3.0

0.2

2.2±0.2*3.2±0.2

2*22

7/0.254

0.76

0.2

1.2

0.2

1.6

0.2

2.0*3.4

0.2

2.4±0.2*3.6±0.2

2*20

7/0.32

0.96

0.2

1.4

0.2

1.8

0.2

2.2*3.8

0.2

2.6±0.2*4.0±0.2

2*18

7/0.39

1.17

0.25

1.7

0.2

2.1

0.2

2.5*4.4

0.2

2.9±0.2*4.6±0.2

2*16

19/0.3

1.5

0.25

2.0

0.2

2.4

0.2

2.8*5.0

0.2

3.2±0.2*5.2±0.2

2*14

19/0.37

1.85

0.25

2.4

0.2

2.8

0.2

3.2*5.8

0.2

3.6±0.2*6.0±0.2
