KX-AGG Thermocouple Wire & Cable

You are here: Home » Products » Thermocouple Wire&Cable » K Type » K-AGG » KX-AGG Thermocouple Wire & Cable

Share to:

KX-AGG Thermocouple Wire & Cable

Size:2*26-2*14AWG
Color: P: Green,N:White
Package: 305m/roll

Quantity:



Inquire Add to Basket

Model:
KX-AGG
Brand:
Fongming

Product Description

J Thermocouple Wire

Description

Name:Thermocouple wire

Model:K-AG-G Type

Size:2*26-2*14AWG

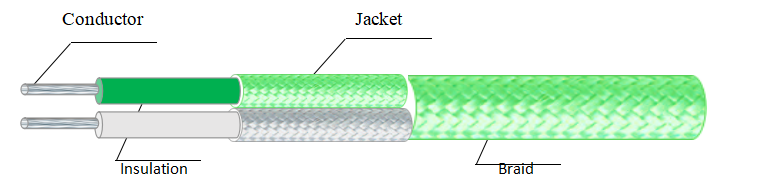

Structure

Conductor：Positive Ni-Cr, NegativeNi-Si

Insulation: PFA

Color: P: Green,N:White

Jacket: Fiberglass Braid With Silicone Resin Coating

Color: P: Green,N:White

Braid: Fiberglass Braid With Silicone Resin Coating

Color:Green

微信截图_20201204092117

Size (AWG)	Conductor Structure P&N (mm)	Diameter (mm)	Insulation Thickness (mm)	Diameter (mm)	Jacket Thickness (mm)	Diameter (mm)	Braid Thickness (mm)	OD (mm)
2*26	7/0.16	0.48	0.2	0.9	0.2	1.3	0.2	1.7±0.2*2.8±0.2
2*24	7/0.2	0.6	0.2	1.0	0.2	1.4	0.2	1.8±0.2*3.0±0.2
2*22	7/0.254	0.76	0.2	1.2	0.2	1.6	0.2	2.0±0.2*3.4±0.2
2*20	7/0.32	0.96	0.2	1.4	0.2	1.8	0.2	2.2±0.2*3.8±0.2
2*18	7/0.39	1.17	0.25	1.7	0.2	2.1	0.2	2.5±0.2*4.4±0.2
2*16	19/0.3	1.5	0.25	2.0	0.2	2.4	0.2	2.8±0.2*5.0±0.2
2*14	19/0.37	1.85	0.25	2.4	0.2	2.8	0.2	3.2±0.2*5.8±0.2

KX Type KX Type Thermocouple Wire KX Type Thermocouple Cable Type KX Thermocouple Wire Type KX Thermocouple Cable Thermocouple Wire Thermocouple Cable PFA Wire KX Type PFA Wire Type KX PFA Wire
