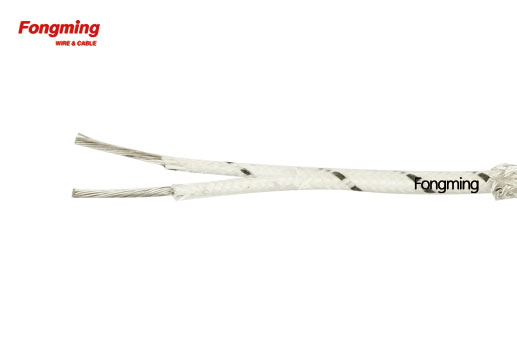

JX-AA Thermocouple Wire & Cable

Size:2*26-2*14AWG
Color: P: Black,N:White
Package: 305m/roll
Quantity:
Inquire Add to Basket

  • JX-AA

  • Fongming

JX Thermocouple Wire



Description

Name:Thermocouple wire

Model:JX-A-A Type

Size:2*26-2*14AWG


Structure

Conductor：Fe,Cu-Ni

Insulation: PFA

Color: P: Black,N:White

Jacket: PFA

Color:Black


微信截图_20201203154956


Size

(AWG)

Conductor

Structure

P&N  (mm)

Diameter

(mm)

Insulation Thickness

(mm)

Diameter

(mm)

Jacket

Thickness

(mm)

O.D.

(mm)

2*26

7/0.16

0.48

0.2

0.9

0.3

1.5±0.2*2.4±0.2

2*24

7/0.2

0.6

0.2

1.0

0.3

1.6±0.2*2.6±0.2

2*22

7/0.254

0.76

0.2

1.2

0.3

1.8±0.2*3.0±0.2

2*20

7/0.32

0.96

0.2

1.4

0.3

2.0±0.2*3.4±0.2

2*18

7/0.39

1.17

0.25

1.7

0.4

2.5±0.2*4.2±0.2

2*16

19/0.3

1.5

0.25

2.0

0.4

2.8±0.2*4.8±0.2

2*14

19/0.37

1.85

0.25

2.4

0.4

3.2±0.2*5.6±0.2
