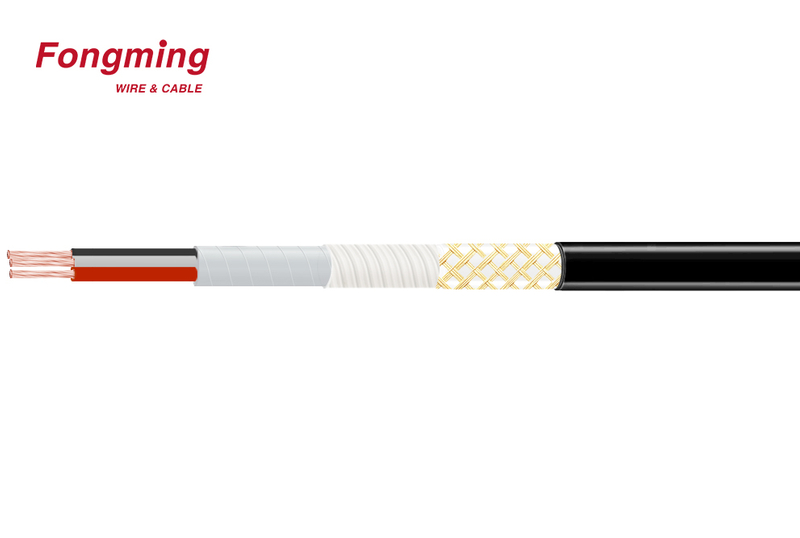

FM-THERMO Silicone Insulated Reeling Cable

Color: Red, White, Yellow, Green, Brown, Black, Blue, Pink, etc. Size:4*16-4*1/0AWG

Availability:

Quantity:



Inquire Add to Basket

Model:
FM-THERMO
Brand:
Fongming

Product Description

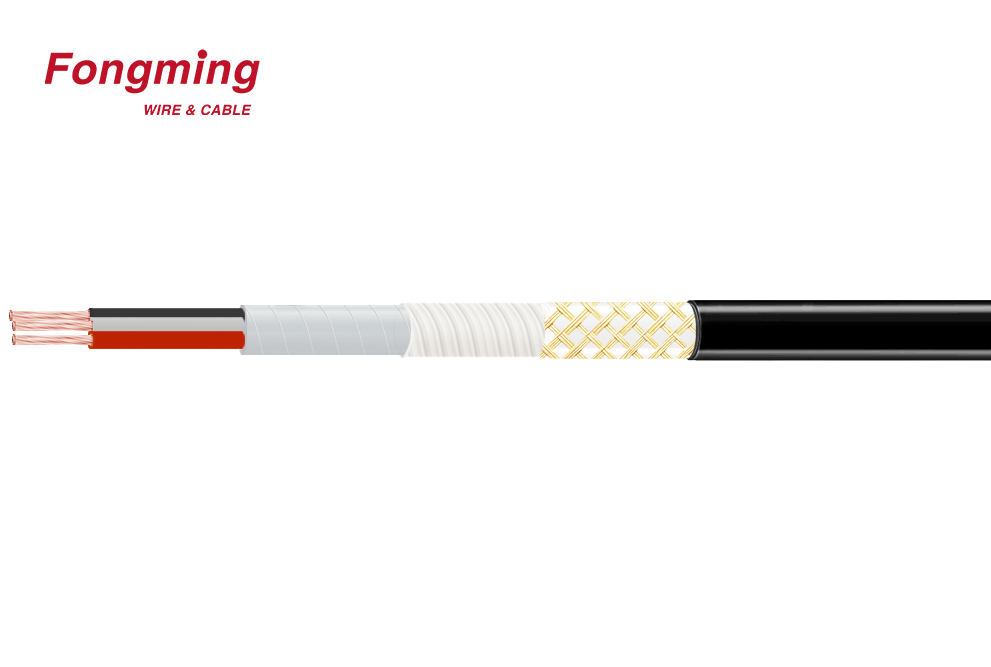

FM-THERMO Silicone Insulated Reeling Cable

Description

Name: Silicone Insulated Cable

Model: Reeling SR200-Multi

Size:4*16-4*1/0AWG

Feature

Ratings Voltage: 600V

Rated temperature: 200°C

Structure

Conductor: Nickel Plated Copper2%

Insulation: Silicone Rubber

Color: TBD

Filler: See Table

Binding: Polyester Yarn

Cabling&Wrapping: PTFE Tape

Wrapping: Fiberglass Tape

Inner Jacket: Silicone Rubber

Color: GreyBraid: Aramid Fiber Coverage: 12%-15%m

Jacket: Silicone Rubber

Color: Grey

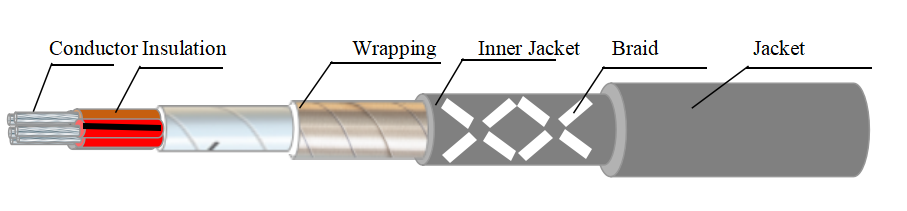

ScreenShot_2026-05-06_165058_573

Drag the gray slider below to view all contents of the table

Cores/ AWG	Conductor (mm)	Diameter (mm)	Insulation Thickness (mm)	Diameter (mm)	PTFE Thickness (mm)	Diameter (mm)	Fiberglass Thickness (mm)	Diameter (mm)	Inner Jacket Thickness (mm)	Diameter (mm)	Aramid Braid Thickness (mm)	Diameter (mm)	Outer Jacket Thickness (mm)	O.D. (mm)	Filler O.D. (mm)	Filler
4*16	26/0.254	1.5	1.14	3.8	0.2	9.6	0.7	11.0	0.9	12.8	0.15	13.1	1.1	15.3±0.7	1*1.6	F+4
12*16	26/0.254	1.5	1.14	3.8	0.2	16.2	0.7	17.6	1.65	20.9	0.15	21.2	1.8	24.8±1.0	0	3+9
19*16	26/0.254	1.5	1.14	3.8	0.2	20.6	0.7	22.0	2.0	26.0	0.15	26.3	2.15	30.6±1.3	15.0+13.8	F+(6+F)+13
4*14	41/0.254	1.88	1.14	4.2	0.2	10.5	0.7	11.9	1.1	14.1	0.15	14.4	1.25	16.9±0.7	1*1.8	F+4
7*14	41/0.254	1.88	1.14	4.2	0.2	14.3	0.7	15.7	1.1	17.9	0.15	18.2	1.25	20.7±0.9	1*5.5	F+7
16*14	41/0.254	1.88	1.14	4.2	0.2	20.1	0.7	21.5	2.0	25.5	0.15	25.8	2.15	30.1±1.3	1*3.0	F+5+11
4*12	65/0.254	2.37	1.14	4.7	0.2	11.6	0.7	13.0	1.1	15.2	0.15	15.5	1.25	18.0±0.8	1*2.0	F+4
8*12	65/0.254	2.37	1.14	4.7	0.2	16.0	0.7	17.4	1.65	20.7	0.15	21.0	1.8	24.6±1.0	1*7.6	F+8
12*12	65/0.254	2.37	1.14	4.7	0.2	19.9	0.7	21.3	2.0	25.3	0.15	25.6	2.15	29.9±1.3	0	3+9
20*12	65/0.254	2.37	1.14	4.7	0.2	25.4	0.7	26.8	2.0	30.8	0.15	31.1	2.15	35.4±1.5	1*6.2	F+7+13
24*12	65/0.254	2.37	1.14	4.7	0.2	28.6	0.7	30.0	2.0	34.0	0.15	34.3	2.15	38.6±1.5	2*3.4	2+8+14
12*10	105/0.254	2.88	1.14	5.2	0.2	22.0	0.7	23.4	2.0	27.4	0.15	27.7	2.15	32.0±1.5	0	3+9
4*10	105/0.254	2.88	1.14	5.2	0.2	13.0	0.7	14.4	1.1	16.6	0.15	16.9	1.25	19.4±0.9	1*2.2	F+4
8*10	105/0.254	2.88	1.14	5.2	0.2	19.7	0.7	21.1	1.8	24.7	0.15	24.8	2.0	28.8±1.5	1*8.4	F+8
17*10	105/0.254	2.88	1.14	5.2	0.2	28.0	0.7	29.4	2.0	33.4	0.15	33.7	2.15	38.0±1.5	16.8+15.2+2*5.2	F+(6+F)+ (11+2F)
4*8	168/0.254	4.17	1.52	7.2	0.2	17.8	0.7	19.2	1.6	22.4	0.15	22.7	1.85	26.4±1.3	1*3.0	F+4
2*6	266/0.254	5.25	1.52	8.3	0.2	17.0	0.7	18.4	1.8	22.0	0.15	22.3	2.0	26.3±1.5	2*6.0	2F+2
6*6	266/0.254	5.25	1.52	8.3	0.2	25.3	0.7	26.7	2.0	30.7	0.15	31.0	2.15	35.3±2.0	1*8.3	F+6
4*6	266/0.254	5.25	1.52	8.3	0.2	20.4	0.7	21.8	1.8	25.4	0.15	25.7	2.0	29.7±1.5	1*3.5	F+4
2*4	420/0.254	6.6	1.52	9.6	0.2	19.6	0.7	21.0	1.8	24.6	0.15	24.9	2.0	28.9±1.5	2*6.4	2F+2
4*4	420/0.254	6.6	1.52	9.6	0.2	23.6	0.7	25.0	1.8	28.6	0.15	28.9	2.0	32.9±1.5	1*4.0	F+4
4*2	665/0.254	8.3	1.52	11.3	0.2	27.7	0.7	29.1	2.0	33.1	0.15	33.4	2.15	37.7±2.0	1*4.8	F+4
6*2	665/0.254	8.3	1.52	11.3	0.2	34.3	0.7	35.7	2.0	39.7	0.15	40.0	2.15	44.3±2.0	1*11.3	F+6
4*1/0	1056/0.254	10.46	2.03	14.5	0.2	35.4	0.7	36.8	2.0	40.8	0.15	41.1	2.15	45.4±2.0	1*6.2	F+4

Drag the gray slider above to view all contents of the table

High-Temperature Silicone Cable 200°C Flexible Cable Aramid Fiber Braided Cable Reeling Cable THERMO Cable PTFE Wrapped Power Cable 600V Heat Resistant Wire Silicone Rubber Jacketed Cable Multi-Conductor High Temp Cable Industrial Reeling Cable 200°C
